2C~8C Pharmacy Refrigerator, Classic-s Series

The Dual Sensors pharmacy refrigerator is suitable for installation in chemist's shop,pharmacy dual sensors, one air sensor for rapid control response, one product sensor with glycerin bottle for samples simulation temperature display, stored inside the refrigerator.

SUPERIOR SAMPLE PROTECTION:

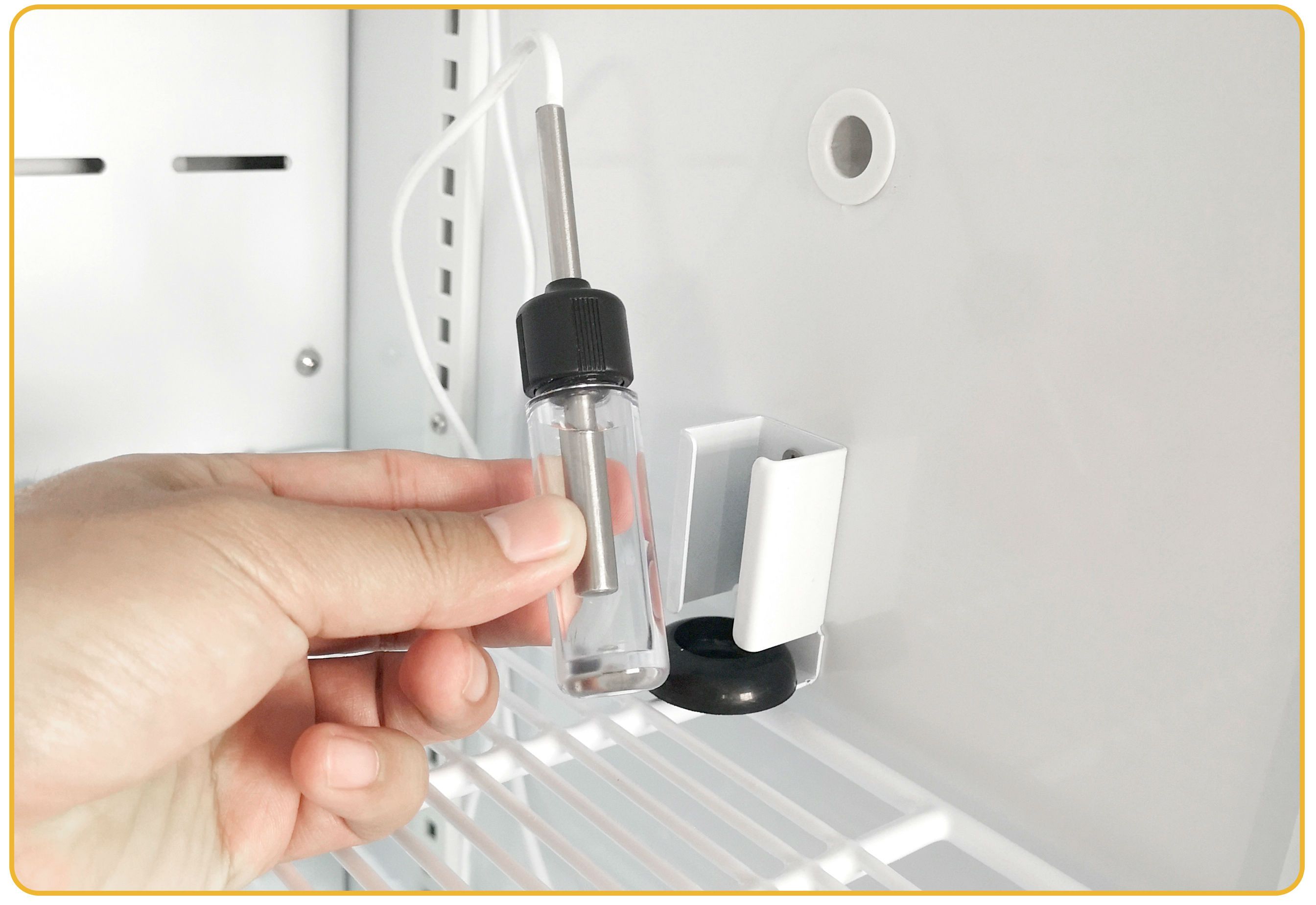

· Product sensor with glycerin bottle for samples simulation temperature
· Magnetic door gaskets for a positive seal

· Accurate temperature control to ensure inner temperature 2~8 ℃

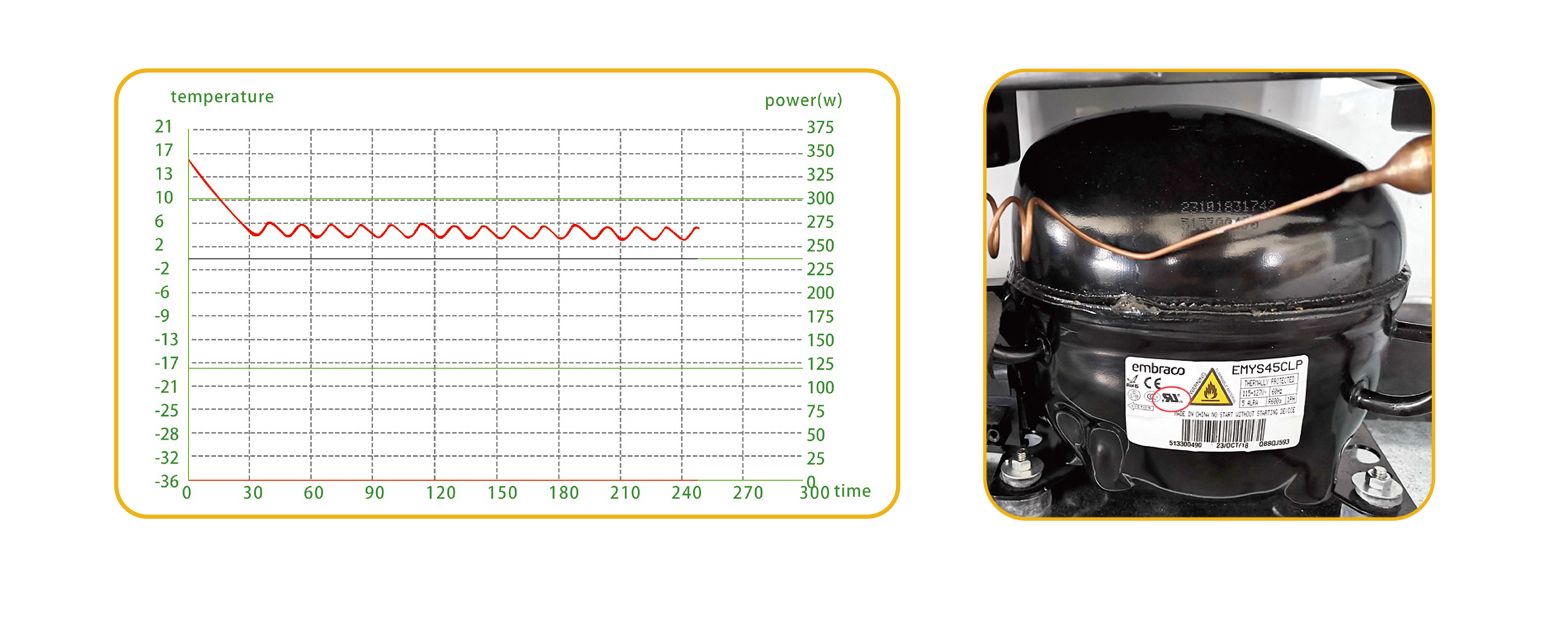

· Embraco compressor with R600a refrigerant
· Waterproof fans forced air cooling for rapid recovery and better temperature control
· Automatic defrost and condensate evaporation

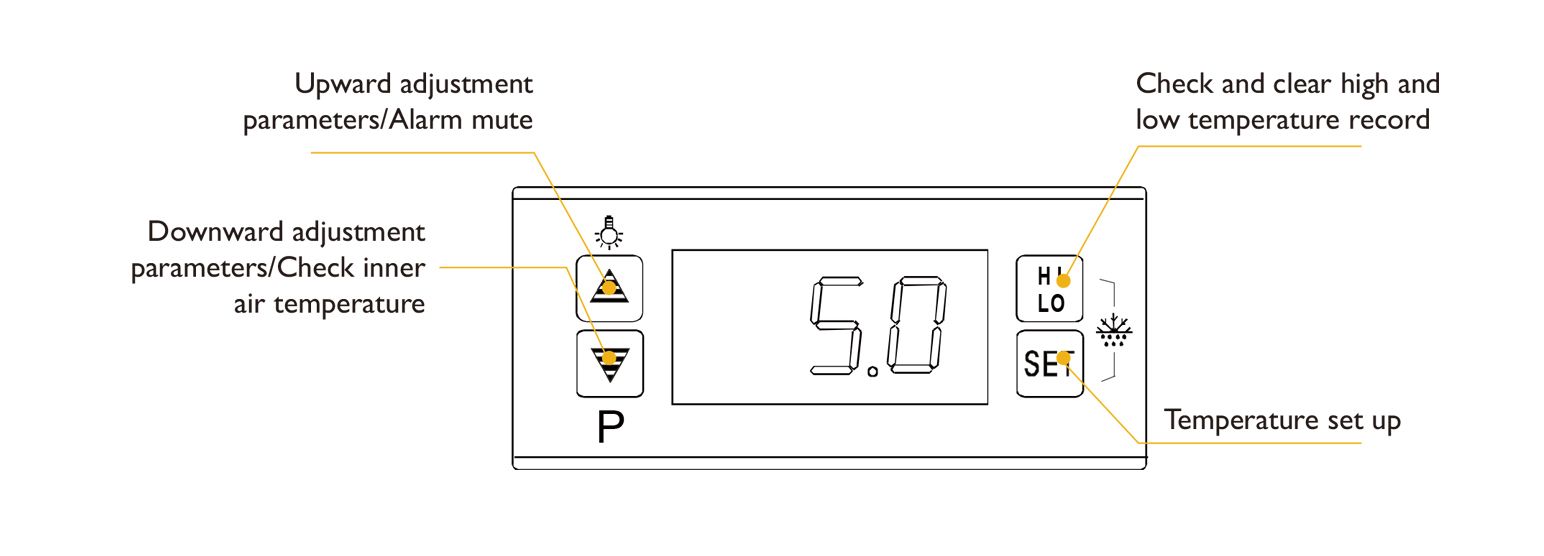

· Microprocessor temperature controller with digital LED display. The controller displays product temperature all  the time, pushing lower arrow will display air temperature, accuracy of display is 0.1℃
· Adjustable audible and visual Hi/Lo temperature alarm
· Min/Max temperature recording
· Selectable °F or °C control
· Password Protection for parameter settings
· Three types of alarms: buzzer, flashing indicator and remote alarm signal
· Alarm mute


MULTIPLE SECURITY FACILITIES:

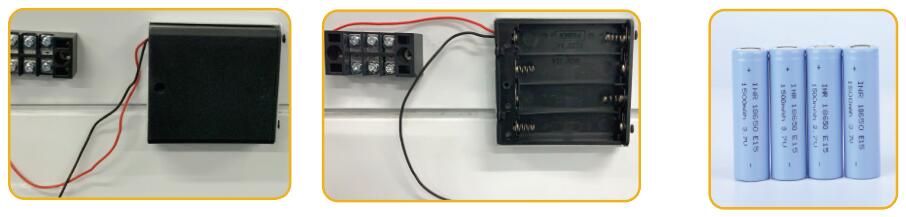

· Power failure alarm---rechargeable backup battery for power failure alarm and temperature display.(Battery box is standard, battery should be bought locally,4 piece batteries for more than 80 hours after main power supply is cut off)

· Remote alarm dry contact on the back
· Door ajar alarm/High & low temperature alarm/Sensor failure alarm
· Key Door lock (2 keys) to prevent unauthorized access

OTHER USER-FRIENDLY DESIGNS:

· Inner LED light, automatic activated by opening door
· White plastic coated iron shelves with tight wire spacing to support small items, height is adjustable within loading line (Basket or drawer is optional accessories with additional cost)

· Sensor access port 1’’diameter
· Reversible door with auto close feature(for right hinge only)
· Comfort handle design, enough space to install a pyxis lock
· Solid base with leveler legs

OPTIONAL FEATURES:

· Customized design as per request
· Temperature chart recorder with chart paper
· Printer
· Data Logger/Thermometer Monitor with Digital Display with alarm (field install)
· Extra shelf

· Casters in lieu of base
· Legs in lieu of base
· Stainless steel interior
· Stainless steel exterior
· Stacking kit


ModelMPR-60SMPR-110SMPR-140SMPR-260SMPR-360SMPR-426S
Technical DataDual   ProbesProduct/AirProduct/AirProduct/AirProduct/AirProduct/AirProduct/Air
Gross Capacity (L)29L98L168L228L328L448L
Cabinet TypeUpright
Working Condition (°C)10~32
Cooling TypeForced   Air Cooling
Defrost ModeAutomatic
RefrigerantCFC-Free,R600a
Noise (dB)454545454545
ControlTemperature   ControlMicroprocessor   Thermostat
DisplayDigital   LED display
PerformanceTemperature   Range (°C)2~82~82~82~82~82~8
Accuracy(°C)0.10.10.10.10.10.1
Uniformity(°C)±1.5±1.5±1.5±1.5±2±2
MaterialDoorGlass/SolidGlass/SolidGlass/SolidGlass/SolidGlass/SolidGlass/Solid
InteriorHIPS   plasticPowder Coated Aluminum
ExteriorHIPS   plasticPowder Coated Aluminum
ShelfDirt-pickup   resistant plastic coated iron wire, height adjustable
Electrical   DataVoltage/Frequency230V/50Hz(115V/60Hz)
Power (W)90130130180180180
Power Consumption (kw.h/24h)0.60.80.911.51.7
Electrical Current (A)0.4   (0.8)0.6   (1.2)0.6   (1.2)0.8   (1.6)0.8   (1.6)0.8   (1.6)
DimensionNet/Gross   Weight (kg)28.5/3140/4354/5975/8186/9493/102
Internal Dimension (W/D/H   mm)361*205*400Top390*300*509     Bottom390*195*210Top505*442*460 Bottom:505*310*165Top505*442*88  Bottom505*310*165Top505*442*1180      Bottom505*310*165Top:505*442*1440   Bottom505*310*165
External Dimension(W/D/H mm   )              ( not included the   handle)445*458*535450x458x875595*611*840595*611*1260595*611*1560595*611*1820
Packing Dimension(W/D/H )500*576*580510*560*900662*700*890662*700*1310662*700*1610662*700*1870
FunctionsHigh/low   Temperature AlarmYYYYYY
Remote Alarm ContactYYYYYY
Power Failure AlarmYYYYYY
Sensor Error AlarmYYYYYY
Low Battery AlarmYYYYYY
Door Ajar AlarmYYYYYY
AccessoriesInner   LightLED   lightLED   lightLED   lightLED   lightLED   lightLED   light
Door LockYYYYYY
CasterNoY/2Y/2Y/2Y/2Y/2
Foot Lock42222No
Shelf/basket Quantity3/-4/-4/-7/-7/-7/-
Remote Alarm ContactStandardStandardStandardStandardStandardStandard
Test HoleStandardStandardStandardStandardStandardStandard
Printer/ Chart RecorderOptionalOptionalOptionalOptionalOptionalOptional
Data LoggerOptionalOptionalOptionalOptionalOptionalOptional
CertificationsISO  CE    ETLISO  CE    ETLISO  CE    ETLISO  CE    ETLISO  CE    ETLISO  CE    ETL
