CryoCenter Series, LN2 supply tank

CryoCenter Series liquid nitrogen tanks/container are the latest high performance cryogenic liquid phase storage container which mainly used for liquid nitrogen storage in central laboratories. It introduces low amount of liquid vaporization to generate pressure, providing pressure for the tank to discharge liquid, thereby supply liquid nitrogen for other containers.
Stainless wheel construction ensures them to be used in most rigorous environment for long time. Compared with traditional welded insulated cylinder, it largely reduces liquid nitrogen evaporation loss.

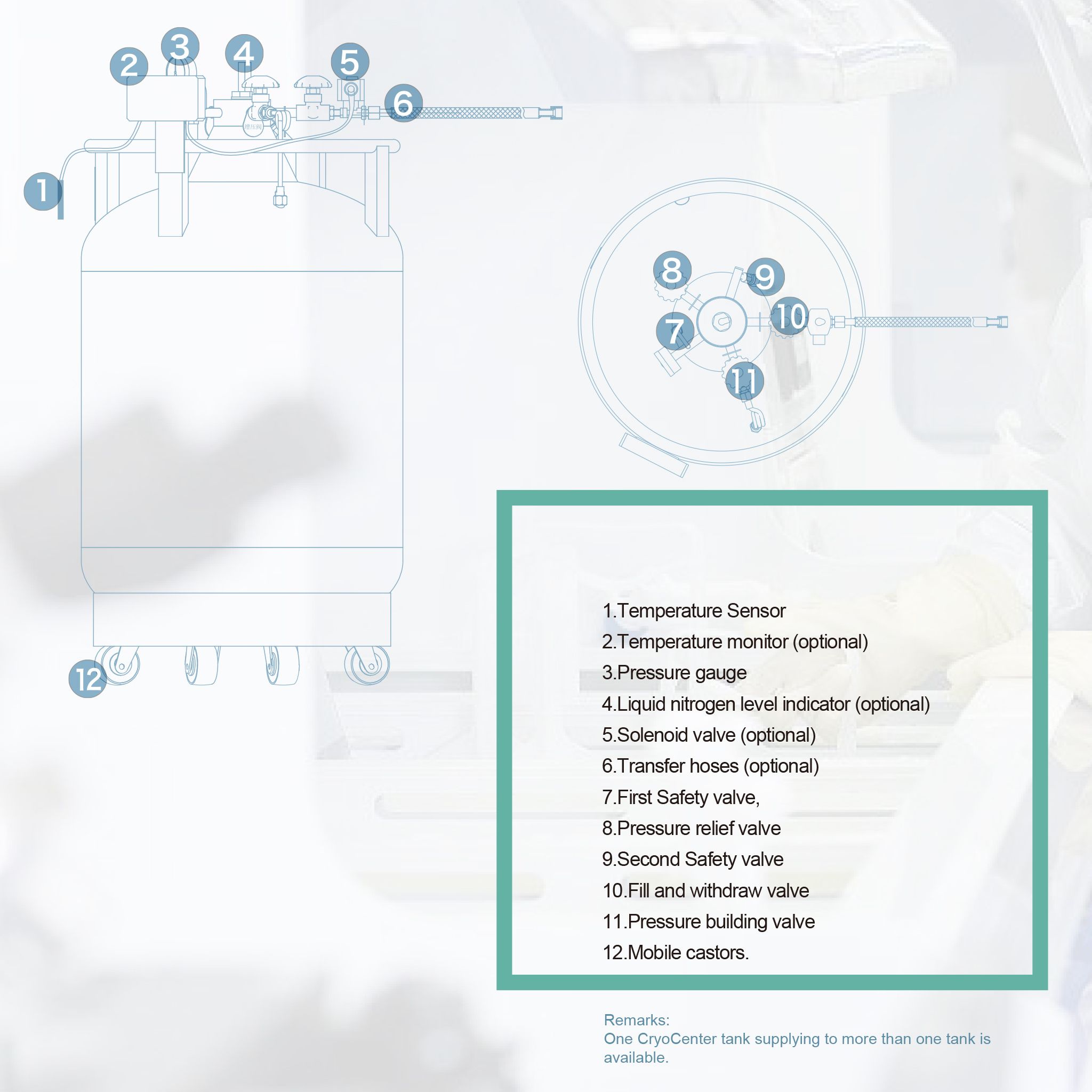

The CryoCenter Series tanks include pressure raising valve, drip valve, drain valve and manometer.
The CryoCenter 200 and above tanks equip with rupture disk and muffler to provide customers with goods user’sexperience. In addition, CryoCenter Series tanks equip with four robust castor for easy use and move to different area.
Mainly apply to laboratory and chemical enterprises in need of storing and supplying liquid nitrogen automatically.




Key Features
    5 years vacuum warranty
    Stainless steel tanks
    Lockable casters

    Low liquid nitrogen evaporation
    Safety design and mutual or automatic protection
    Electrical level meter and float level meter (optional)

Back-up System

    The CryoCenter series is a reliable device for liquid nitrogen storage and transportation. Its professional design reduces the liquid nitrogen evaporation consumption and guarantee users’ safety. It can be optional for the solenoid valve, inner temperature monitor and liquid nitrogen level indicator to realize the auto supply of liquid nitrogen.



ModelCryoCenter 30 (E/S)CryoCenter 50 (E/S)CryoCenter 100 (E/S)CryoCenter 150 (S)CryoCenter 200 (E/S)CryoCenter 240 (E/S)CryoCenter 300 (E/S)CryoCenter 500 (E/S)
Performance
Liquid nitrogen Capacity (L)3050100150200240300500
Static Evaporation Rate (L/day)2.521.31.31.21.21.11.1
Infusion   volume (L/min)334688810
Unit Dimension
Overall Height(mm)879991118511881265135014591576
External   Diameter(mm)4545066067067587588571008
Weight Empty   (KG)325475102130148202255
Working Condition
Standard Working Pressure   (mpa)0.050.050.050.050.050.050.050.05
Highest   Working Pressure (mpa)0.090.090.090.090.090.090.090.09
Primiary   Relief Value Opening Pressure (mpa)0.0990.0990.0990.0990.0990.0990.0990.099
Secondary   Relief Value Opening Pressure (mpa)0.150.150.150.150.150.150.150.15
Pressure Gauge   indicating Range (mpa00.2500.2500.2500.2500.2500.2500.2500.25
