LyoLab 25

View Other Series

LyoLab 25 series floor-standing freeze dryers are designed for lyophilizing moderate loads, either in flasks, vials, ampoules or bulk. The compact design is ideal for labs with limited floor space. LyoLab 25 realizes maximum capacities of condensation (6 kg/24 h) in the minimum possible space.

LyoLab use a touch screen controller, continuous monitors freeze-drying process. It also provides fully automatic functioning, with the possibility of manual actuation.

LyoLab 25 series offers -60℃ models & -85℃ models, to fulfill freeze-drying of different materials.

Bluk shelf models are for freeze-drying of bulk and raw materials. Stoppering shelf models are for vials and serum. Flask shelf is optional accessory upon request.

LyoLab 25 series can be supplied with or without electric heating function. Users can choose according to product freeze drying requirements.

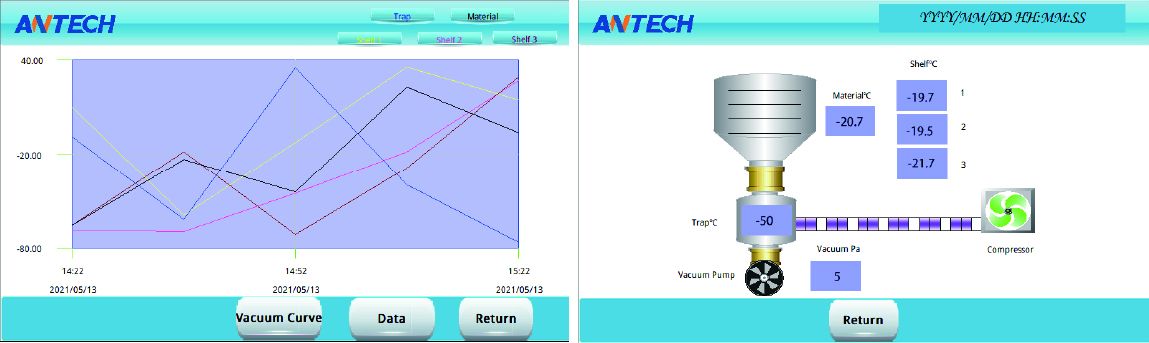

1. Full color, 5 inch touch screen controller equipped with LyoWise™ operation system:

· Real time display of collector temperature & vacuum level

· Automatic control of freeze-drying process, program can be set by users

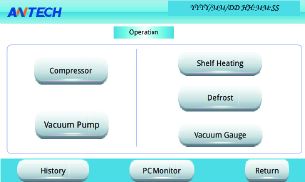

· Can be switched to manual operation mode at any time needed, to realize entire control of freeze-drying process.



· Record vacuum rate, cold trap temperature, material temperature, shelf temperature, USB port for data download.



· Alarms for temperature and vacuum level, guarantee the safety and stability of operation.

· Digital password protection

2. The cold trap cavity and material shelf are made of 304L stainless steel, corrosion-resistant and easy to clean.

3. Material pre-freezing function.

4. Automatic defrost for easy use.

5. The cold trap drying chamber is made in aviation-class plexiglass transparent material, which can observe material status clearly.

6. World-class compressor, optimized cooling efficiency, fast cooling, lower power consumption & environment friendly.

7. Two temperature ranges available. -60° C models for aqueous samples, and -85° C models for low eutectic temperatures materials.

8. Various drying accessories to process flasks, vials, ampoules or bulk.

ModelCondenser temperatureChamber typeShelf heater
LyoLab 25B-60℃BulkN/A
LyoLab 25BHBulkYes
LyoLab 25SStopperingN/A
LyoLab 25SHStopperingYes
LyoLab 25B/U-85℃BulkN/A
LyoLab 25BH/UBulkYes
LyoLab 25S/UStopperingN/A
LyoLab 25SH/UStopperingYes


ModelLyoLab 25BLyoLab 25BHLyoLab 25SLyoLab 25SHLyoLab 25B/ULyoLab 25BH/ULyoLab 25S/ULyoLab 25SH/U
Chamber typeBulkBulkStopperingStopperingBulkBulkStopperingStoppering
Shelf heaterN/AYesN/AYesN/AYesN/AYes
Shelf heating rangeN/A-40℃~+50℃N/A-40℃~+50℃N/A-40℃~+50℃N/A-40℃~+50℃
Total power1900W2150W1900W2150W1900W2150W1900W2150W
Shelf layers44334433
Distance between shelves76mm76mm70mm70mm76mm76mm70mm70mm
φ22mm Vial (pcs)388388291291388388291291
φ16mm Vial (pcs)756756567567756756567567
Effective shelf area0.25㎡
Ice condenser capacity6 kg/24h
Final condenser temperature≤-62℃≤-85℃
Number of compressors12
Controller5 Inch color touch screen controller installed with LyoWise™ operation system
Freeze-drying CurveYes
Pre-freezingYes
Freeze-drying ProcessAutomatic / User Programable/ Manual
Data StorageYes
USB portYes
RS232 portYes
Auto defrostYes
Vacuum pumpYes
Vacuum degree≤5Pa (no load)
Cold trap cooling rate 20℃ to -40℃≤30min (no load)
Vacuum pumping ratefrom standard atmospheric pressure to 10Pa≤20min (no load)
Shelf sizeDiameter Φ300 mm
External dimensions (L×W×H)640mm×540mm×845mm
Weight 135㎏
Optional accessory8-port manifold
40-port manifold
Inert gas filling port
SUS304 cart (freeze-dryer on top & vacuum pump below)
