Dry-shipper, for Sample Transportation

View Other Series

CryoCarrier Series is dry shipper dewars for safe transportation of biological products in vapor phase at cryogenic (-150°C or lower) temperatures.

Taking advantage of innovative absorbing material and optimized construction, Antech CryoCarrier Series dry shippers can be recharged within 2 hours, while new/warm tanks still need a sit time of 24 hours.

Features:

1.Vapor phase storage ensures dry and spill-free shipping

2.Light in weight and durable to use

3.Applicable for various of sample containers, such as vial, straw, blood bag

4.Recharged in 2 hours

5.Holdover time 2~15 days to meet different requirements

6.Protective trolley case as optional

Based on type of products to be transported, Antech offers 3 lines of dry-shippers:

1. CryoCarrier R: for biological products stored with cryogenic vials and boxes;

2. CryoCarrier B: for biological products stored with 25ml/50ml/250ml blood bags and cassettes;

3. CryoCarrier C: for biological products stored with round canister, such as straws, cryogenic vials.

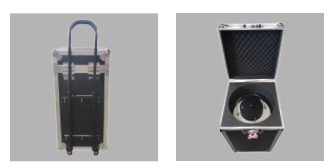

Protective Trolley Case:

1.Heavy duty case with aluminum frame, durable to use

2. Forming material protection for safety

3. Trolley for easy movement

4. Case lock preventing unauthorized access

Smart Data Logger:

1. -200~70°C

2. Multi-Use, replaceable battery

3. USB 2.0 plug, 28800 readings

4. Encrypted PDF report embedded with raw data Bluetooth printer connection (200XB)

Model	CryoCarrier 6R	CryoCarrier 10R	CryoCarrier 15R	CryoCarrier 25R
Maximum storage capacity
2ml vails capacity	100	100	200	500
25-place box	N/A	4	N/A	N/A
81/100-place box (2 inch height)	1	N/A	2	5
5ml vails capacity	N/A	50	81	162
81-place box (3 inch height)	N/A	N/A	1	2
Peformance
Container gross capacity (L)	6	10	15	25
LN2 absorbtion (L)	1.8	6	6	10
Static evaporation rate (L/day)	0.8	0.4	0.89	0.89
Vapor working duration (day)	2	15	7	11
Dimensions
Neck opening (mm)	190	125	216	216
External diameter (mm)	252	300	396	396
Overal height (mm)	470	554	480	650
Weight empty (kg)	6.5	8.0	11.0	12.5
Weight charged, vapor (kg)	8.0	12.9	15.9	20.6
Accessories
Protection trolley case (optional)	DSC-6	DSC-10	DSC-15	DSC-25
Temperature recorder (optional)	200X, 200XB

Model	CryoCarrier 4B	CryoCarrier 6B	CryoCarrier 25B
Maximum storage capacity
50ml blood bag	4	2	2
250ml blood bag	N/A	2	10
Peformance
Container gross capacity (L)	4	6	25
LN2 absorbtion (L)	2	3.75	10
Static evaporation rate (L/day)	0.45	0.8	0.89
Vapor working duration (day)	4	5	11
Dimensions
Neck opening (mm)	125	190	216
External diameter (mm)	615	470	650
Overal height (mm)	224	252	396
Weight empty (kg)	8.0	6.5	12.0
Weight charged, vapor (kg)	9.6	9.6	20.1
Accessories
Protection trolley case (optional）	DSC-4	DSC-6	DSC-25
Temperature recorder (optional）	200X, 200XB

Model	CryoCarrier 2C	CryoCarrier 3C	CryoCarrier 4C	CryoCarrier 6C
Maximum storage capacity
Number of straws (0.5ml)	330	792	3624	9800
Number of straws (0.25ml)	165	1788	8460	19600
2ml vails	6	15	96	126
Peformance
Container gross capacity (L)	1.5	3	4	6
LN2 absorbtion (L)	0.6	1.3	1.8	2.4
Static evaporation rate (L/day)	0.09	0.15	0.19	0.21
Vapor working duration (day)	7	9	9	11
Dimensions
Neck opening (mm)	35	50	70	80
External diameter (mm)	180	224	224	300
Overal height (mm)	395	435	505	435
Canisters diameter (mm)	25	38	63	70
Canister height (mm)	120	120	276	276
Weight empty (kg)	1.8	3.3	5.5	5.5
Weight charged, vapor (kg)	2.3	4.4	7.0	7.5
Accessories
Protection trolley case (optional)	N/A	DSC-4	DSC-4	DSC-6
Temperature recorder (optional)	200X, 200XB
