Cryogenic Freezer, LN2 Vapor Phase

CryoMatrix series high-efficiency vapor phase liquid nitrogen storage system provides the most ideal storage

conditions for biological samples. The whole series realize -190°C vapor phase storage. Supported by LN2

automatic filling system and temperature & LN2 level monitoring system, CryoMatrix freezers provide all-round

protection to precious sample, assisting life science research and cell therapy applications. Based on the actual

needs of users, Antech has innovatively optimized the performance, structure and control system of the

vapor-phase cryogenic freezer to meet the user's highest standard of large-capacity vapor-phase cryogenic storage requirements.


Advanced Control System

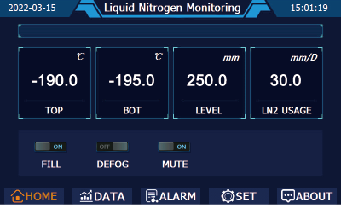

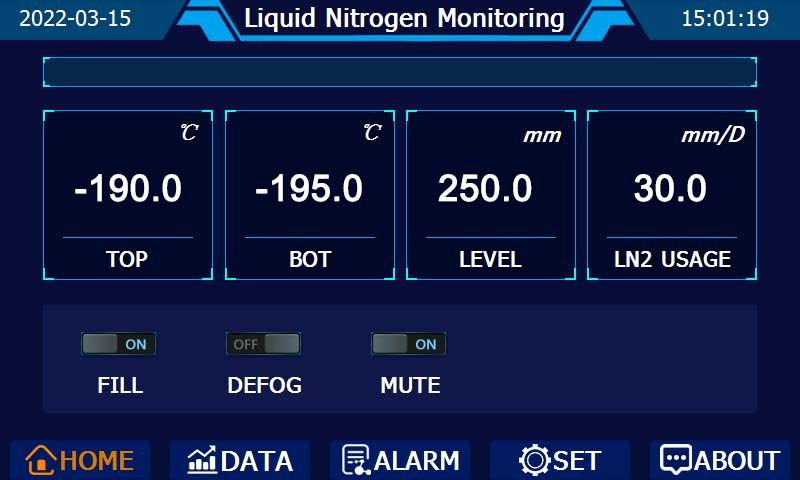

1.HMI human-machine interactive touch screen, display temperature, liquid level, temperature curve and alarm information.

2.Important events such as temperature, alarm, liquid nitrogen fill, can be checked, and can also download through USB disk.

3.Various alarms, and the alarm information can be stored and downloaded through the USB disk.

4.Operating data, such as temperature and liquid level, can be stored for up to 10 years.

5.Optimized structure design to achieve the best sample storage density and save space.

Features

1.Multiple capacity freezers, from 370L to 1,800L, 2.0ml vials storage capacity from 15,600 to 94,500.

2.Excellent temperature uniformity and stability, enabling samples to be stored at -190°C vapor phase environment.

3.Excellent vacuum performance and structural design ensure minimum liquid nitrogen consumption and lower storage costs.

4.Advanced temperature, liquid level monitoring and alarm system, and can realize remote monitoring.

5.Automatic supply of liquid nitrogen, safe and labor-saving.

6.The liquid nitrogen supply system is controlled by multiple solenoid valves, which can effectively prevent the overflow of liquid nitrogen and sample contamination caused by high LN2 level.

7.Manual filling available under special circumstances.

8.Compatible with vapor phase and liquid phase storage modes, users can choose according to their needs.

9.The optimized mechanism design realizes high-density storage to save space.

Humanized Design

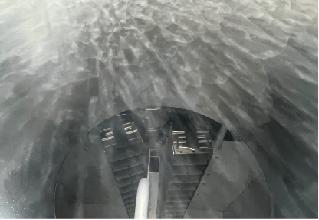

1.Defog function, easier to find samples and shorten lid opening time.

2.After 48 hours of lid open, temperature in the freezer remains below -150℃ (according to the factory test standard).

3.The remote alarm interface can be connected to the central alarm system.

4.Standard automatic charging backup battery to ensure the normal operation of the system for a period of time after power failure.




Model
CryoMatrix 15KCryoMatrix 19KCryoMatrix 28KCryoMatrix 39KCryoMatrix 55KCryoMatrix 94K
Maximum storage   capacity
1.2 & 2ml vial1.2 &2ml   vials 156001950028000392005550094500

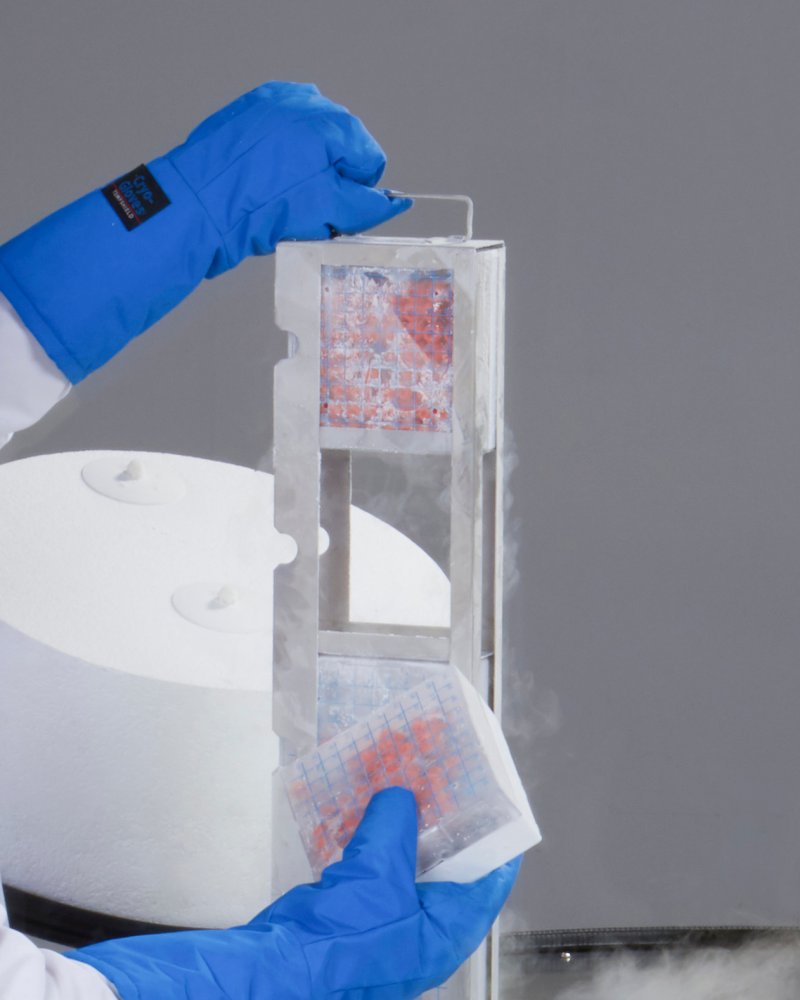

Number of large rack (81/100-place box)121224243260
Number of small rack (25-place box)4416162012
2" Boxes per rack121510141515
5ml vial5ml vials (81-place)583277769720155522073638880
Number of racks121224243260
3.75" Boxes per rack685888
25ml blood bagNumbers of blood bag148419082448326447887992
Number of frames21296899
Bags per frame7212408408532888
50ml blood bagNumbers of blood bag89611521488198431324788
Number of frames128128248248348532
Bags per frame796899
250ml blood bagNumbers of blood bag40050058898013402140
Number of frames100100196196268428
Bags per frame453555
500ml blood bagNumbers of blood bag2403003966609001360
Number of frames6060132132180272
Bags per frame453555
LN2 capacity
LN2 capacity (L)37046055080011601800
LN2 capacity at vapor platform (L)5555125133200295
Dimensions
Neck opening (mm)320320445445526635
Usable internal height (mm)708914590840887906
Inner diameter (mm)73073098098011301390
External diameter (mm)8208201090109012561565
Overall height (mm)140016001400165017901750
Door width limit (mm)9009001110111013001585
Weight empty (kg)210264310395580805
Weight full, vapor phase (kg)2553094125037431045
Functions
ControllerTouch screenTouch screenTouch screenTouch screenTouch screenTouch screen
Full auto fillStandardStandardStandardStandardStandardStandard
Data storage / USB portStandardStandardStandardStandardStandardStandard
DefogStandardStandardStandardStandardStandardStandard
Foldable stepStandardStandardStandardStandardStandardStandard
Backup batteryOptionalOptionalOptionalOptionalOptionalOptional
Vacuum jacketed hoseOptionalOptionalOptionalOptionalOptionalOptional
Inventory rackOptionalOptionalOptionalOptionalOptionalOptional
Wi-Fi connection & cloud accessOptionalOptionalOptionalOptionalOptionalOptional
