Horizontal Clean Bench, Neoteric Type

Horizontal laminar flow cabinet direct HEPA-filtered 99.99% (@0.3μm)air horizontally over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination. Apply in plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation.

    Horizontal laminar flow cabinet / Clean Bench directs HEPA-filtered 99.99% (@0.3μm) air horizontally over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination.

    Apply in plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation.

Main Features

    Main HEPA filter efficiency ≥99.99%(@0.3μm)

    Per-filter to prolong lifetime of main filter

    Tempered glass window with Japan lifting system

    SUS304 working area for easy cleaning

    Adjustable fan unit & one-button velocity selection

    Inter-locking system for illuminating light & UV lamp

    Universal wheel & foot


Applications:

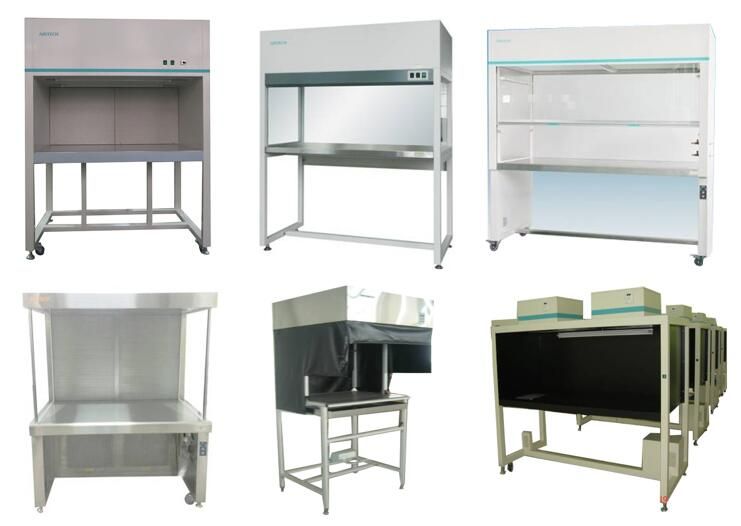

Various Customized Clean Benchs:


ModelHS-840HS-840-UHS-1300HS-1300-U
Airflow TypeHorizontal AirflowHorizonta AirflowHorizonta AirflowHorizonta Airflow
Opertion side/Operator NumberSingle-side/Single-operatorSingle-side/Single-operatorSingle-side/Double-operatorSingle-side/Double-operator
Cleanliness   ClassISO Class 5,FED 209E Class 100ISO Class 5,FED 209E Class 100ISO Class 5,FED 209E   Class 100ISO Class 5,FED 209E Class 100
Filter Efficiency≥99.99%(@0.3um)≥99.99%(@0.3um)≥99.99%(@0.3um)≥99.99%(@0.3um)
Valocity(m/s)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)
Voltage/Frenquency(V/Hz)AC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1Φ
Net Weight (kg)100100160160
Working Dimension(W*D*H)(mm)720*650*570720*650*5701180*650*5701180*650*570
External Dimension(W*D*H)(mm)840*825*1430840*825*14301300*825*14301300*825*1430



No.NameNote
1Electric SocketStandard
2SupporterStandard, integrated
3LightStandard, LED
4U.V.LightOptional
5Gas ValveOptional
6Water ValveOptional
