Vertical Clean Bench, Neoteric Type

The laminar flow cabinet (clean bench) or tissue culture hood is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user. The cabinet is made of stainless steel with no gaps or joints where spores might collect.

Such hoods exist in both horizontal and vertical configurations, and there are many different types of cabinets with a variety of airflow patterns and acceptable uses.

Vertical laminar flow cabinet / Clean Bench directs HEPA-filtered 99.99% (@0.3μm) air vertically over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination.

Main Features:

    Main HEPA filter efficiency ≥99.99%(@0.3μm)

    Per-filter to prolong lifetime of main filter

    Tempered glass window with Japan lifting system

    SUS304 working area for easy cleaning

    Adjustable fan unit & one-button velocity selection

    Inter-locking system for illuminating light & UV lamp

    Universal wheel & foot

Applications of AIRTECH Various of Laminar Flow Cabinets / Clean Benchs:

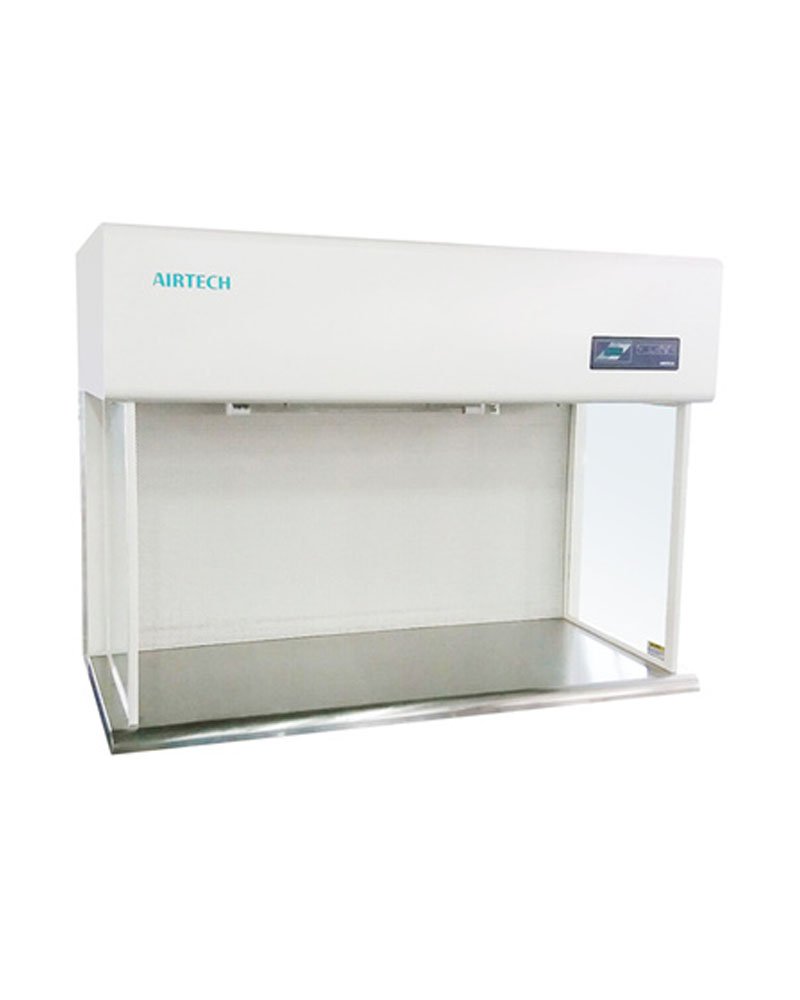

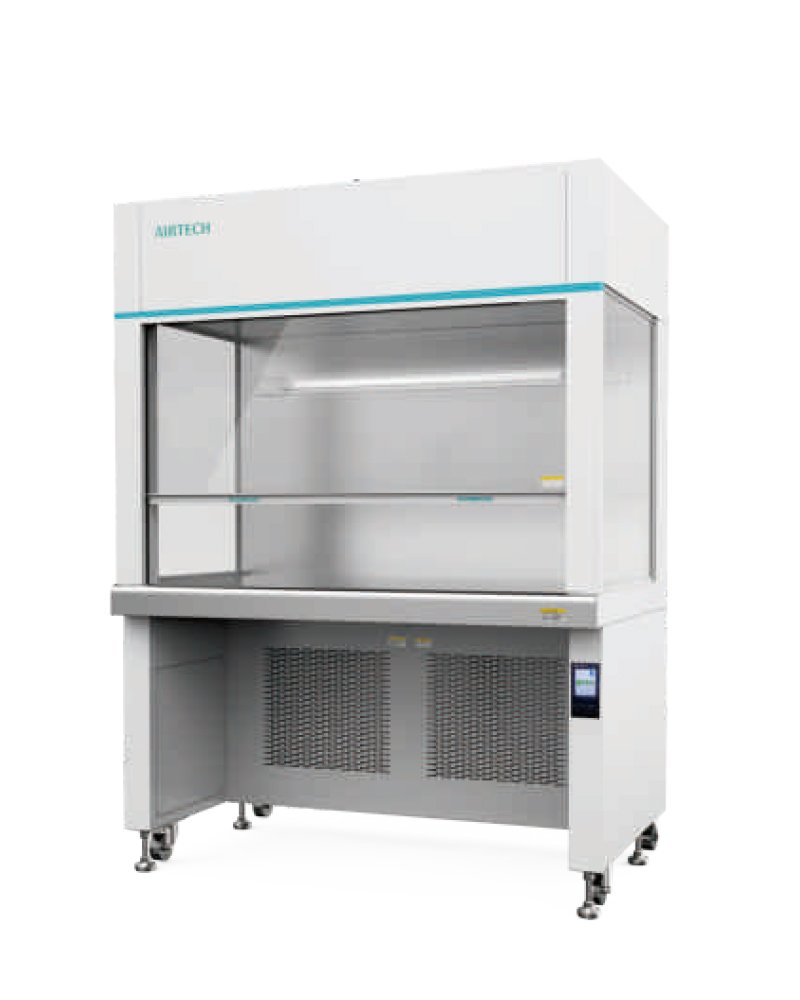

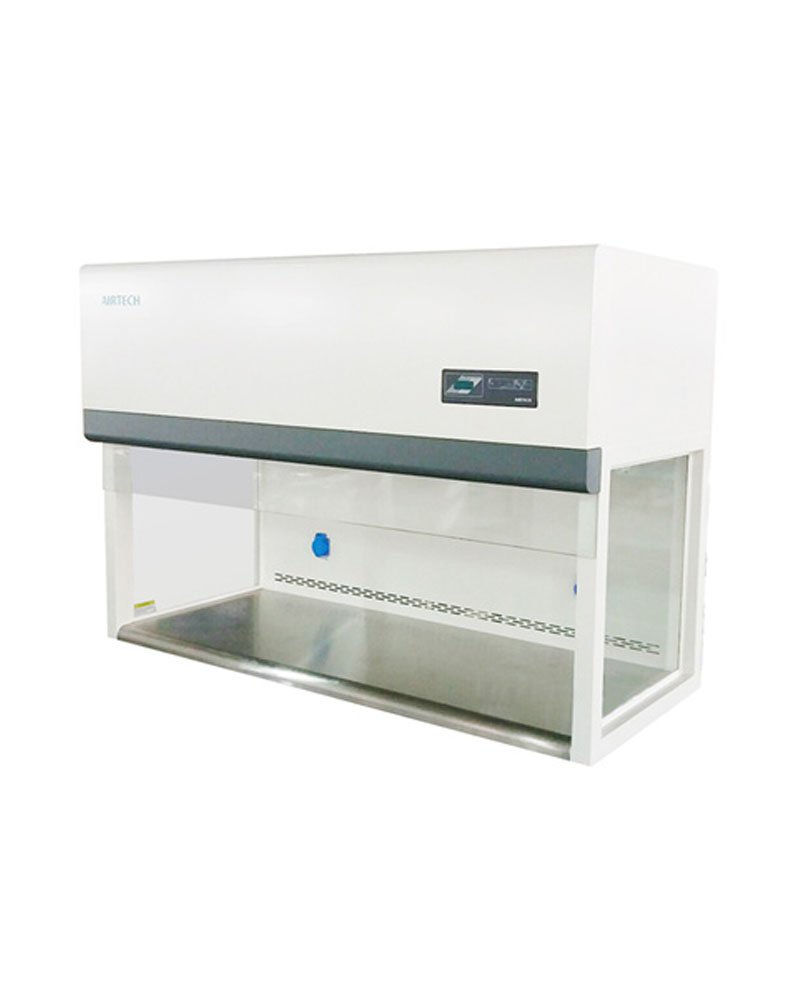

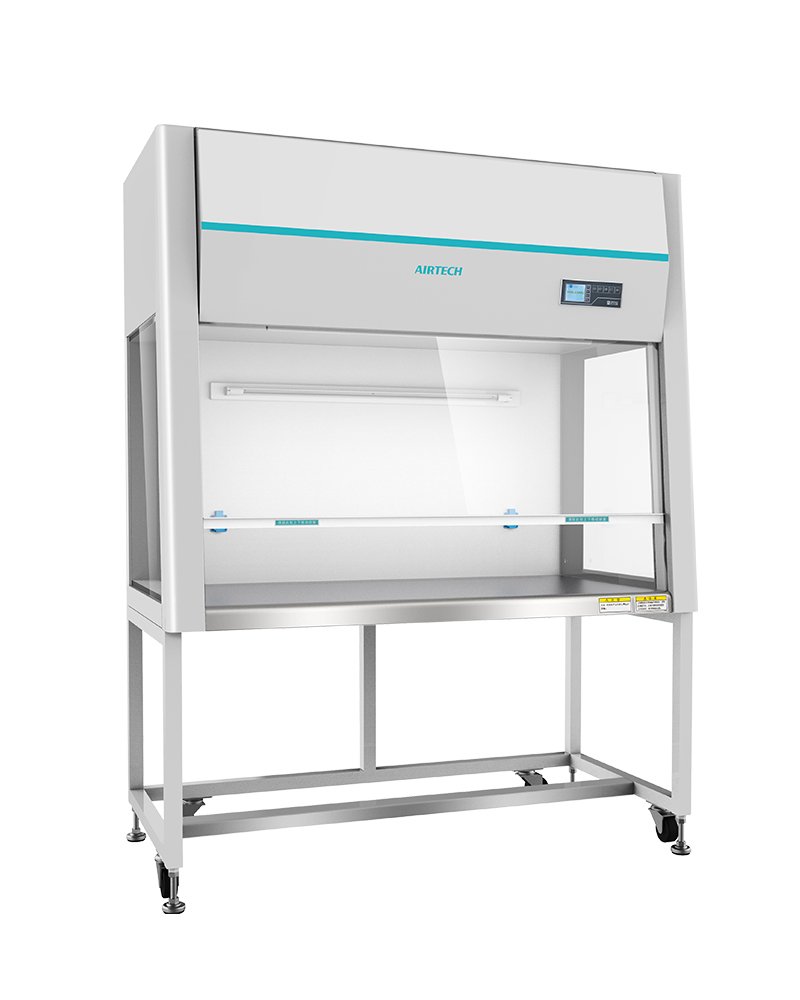

Various Customized Clean Benchs:


ModelVS-840KVS-840K-UVS-1300LVS-1300L-U
Airflow   TypeVertical   AirflowVertical AirflowVertical AirflowVertical Airflow
Opertion side/Operator   NumberSingle-side/Single-operatorSingle-side/Single-operatorSingle-side/Double-operatorSingle-side/Double-operator
Cleanliness   ClassISO   Class 5,FED 209E Class 100ISO Class 5,FED   209E Class 100ISO Class 5,FED 209E     Class 100ISO Class 5,FED 209E Class 100
Filter   Efficiency≥99.99%(@0.3um)≥99.99%(@0.3um)≥99.99%(@0.3um)≥99.99%(@0.3um)
Valocity(m/s)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)
Voltage/Frenquency(V/Hz)AC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1Φ
Net Weight (kg)145145200200
Working Dimension(W*D*H)(mm)680*650*570680*650*5701140*650*7201140*650*720
External   Dimension(W*D*H)(mm)840*825*1625840*825*16251300*825*11751300*825*1175



No.NameNote
1Electric SocketStandard
2SupporterStandard, integrated
3LightStandard, LED
4U.V.LightOptional
5Gas ValveOptional
6Water ValveOptional
