2~8°C Pharmacy Refrigerator, PharmaSafe

View Other Series

The professional PharmaSafe series medical refrigerator, speciﬁcally developed to be used by laboratories, hospitals, and pharmacies, ensure optimal storage conditions for temperature sensitive medical products and biological material, meeting the highest requirement for accurate controlled cold storage. Available with a wide range of capacities and applications, from 60 liters for minor needs to 1400 liters for pharmaceutical warehouses. Both glass door and solid door (forming door) are available. Space saving sliding door refrigerators are available for large capacity models. PharmaSafe refrigerators are compliant with main international requirements, including CE, UL, etc.

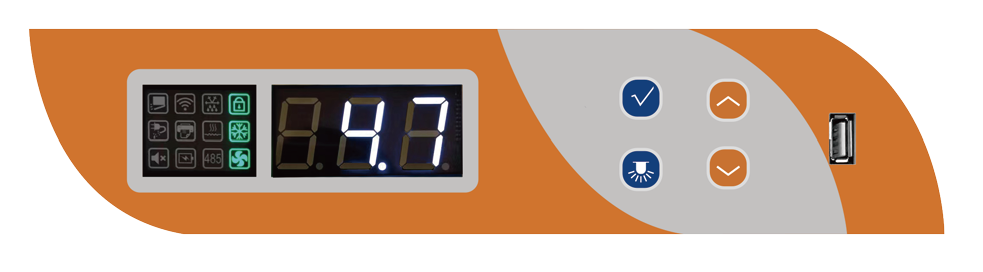

TC-100 Controller

Microprocessor electronic controller for PharmaSafe series medical refrigerators, ﬁtted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.

Performance

1.Forced air cooling for excellent temperature uniformity

2.Variable (cycle) defrost

3.Intelligent microprocessor controller with LED digital display resolution 0.1

4.Magnetically sealed door with rapid cool-down mode after door opening

5.Dual sensor design: Independent control sensor and display sensor

Ergonomic Design

1.Door-activated and exterior switch-activated interior LED lighting

2.Self-close door for convenient operation

3.Left/right side open revisable door (capacity less than 600 liters) to suit various space

4.Ultra-quite design reduces noise level

Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2.CFC-Free polyurethane foaming insulation

3.High efficiency cooling system for lower energy consumption and carbon emission

Alarms

1.High temperature

2.Low temperature

3.Open door

4.Power failure

5.Sensor error

6.Low battery

Safety

1.Build-in data storage and USB port for download

2.Quick check of max/min temperature in 24 hours

3.Password protection avoids key parameters unauthorized change

4.Safety door lock, preventing unauthorized access

5.Access port for additional temperature probe

6.Remote alarm contacts

Model		MPR-68	MPR-136	MPR-260	MPR-360	MPR-525	MPR-656	MPR-1006	MPR-1410
Main specifications	Type	Desktop	Under-counter	Upright	Upright	Upright	Upright	Upright	Upright
	Temperature range (℃)	2～8	2～8	2～8	2～8	2～8	2～8	2～8	2～8
	Climate type	N	N	N	N	N	N	N	N
	Capacity (L)	65	136	270	375	520	638	1140	1410
	Intermal W×D×H (mm)	410×391×420	500×510×570	500×420×1290	500×510×1550	645×510×1640	660×650×1400	1299×650×1400	1460×650×1400
	Extermal W×D×H (mm)	510×590×660	600×680×812	600×590×1585	600×680×1840	775×700×1945	780×840×1965	1300×840×1965	1580×840×1965
	Weight（KGs）	34	53	71	83	121	144	223	238
	Insulation (mm)	50	50	50	50	60	60	60	60
	Cooling type	Forced air	Forced air	Forced air	Forced air	Forced air	Forced air	Forced air	Forced air
	Defrost	Auto defrost	Auto defrost	Auto defrost	Auto defrost	Auto defrost	Auto defrost	Auto defrost	Auto defrost
	Refrigerant	R600a	R600a	R600a	R600a	R600a	R290	R290	R290
Control system	Controller	TC-100	TC-100	TC-100	TC-100	TC-100	TC-100	TC-100	TC-100
	Display	LED digital	LED digital	LED digital	LED digital	LED digital	LED digital	LED digital	LED digital
	Display accuracy	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Power	Power supply(V/Hz)	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60
	Rated power (W)	118; 118; 100	135; 135; 105	175; 210; 180	237; 230; 210	210; 210; 210	260; 260; 250	400; 400; 420	400; 400; 420
	Rated current (W)	1.0; 1.0; 1.2	1.0; 1.0; 1.2	1.3; 1.5; 1.75	1.6; 1.6; 2.2	1.5; 1.5 ; 2.2	1.5; 1.5; 2.6	2.4; 2.4; 4.8	2.4; 2.4; 4.8
Data memory	High/low temp check	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Data memory	USB port	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Alarm functions	Visible/audible alarm	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	High/low temp alarm	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Remote alarm contact	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Sensor failure	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Door open	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Low battery	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Power failure	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Other feature	Door lock with key	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Inner LED light	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Adjustbale foot	Yes	Yes	Yes	-	-	-	-	-
	Caster	-	-	-	Yes	Yes	Yes	Yes	Yes
	Test access port	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1	Φ20mm x 1
	Shelves adjustable QTY	2	2	5	5	5	5	5	5
	Shelf at buttom QTY	1	1	1	1	1
	Door Qty	1	1	1	1	1	1	2	2
Material	Exterior	Pre-coated steel	Pre-coated steel	Pre-coated steel	Pre-coated steel	Pre-coated steel	Coated steel	Coated steel	Coated steel
	Interior	Pre-coated aluminum	Pre-coated aluminum	Pre-coated aluminum	Pre-coated aluminum	Pre-coated aluminum	Coated steel	Coated steel	Coated steel
	Door	2-layer glass, optional solid door	2-layer glass, optional solid door	2-layer glass, optional solid door	2-layer glass, optional solid door	2-layer glass, optional solid door	3-layer glass, optional solid door	3-layer glass, optional solid door	3-layer glass, optional solid door
	Insulation	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane
Shipping	Gross weight (KGs)	42	60	82	102	138	201	258	278
	Packing W×D×H (mm)	570×620×720	650×700×860	660×620×1650	660×700×1900	830×750×2000	840×870×2150	1340×870×2150	1640×925×2180
	Volume (m3)	0.25	0.39	0.68	0.88	1.25	1.57	2.51	3.07
