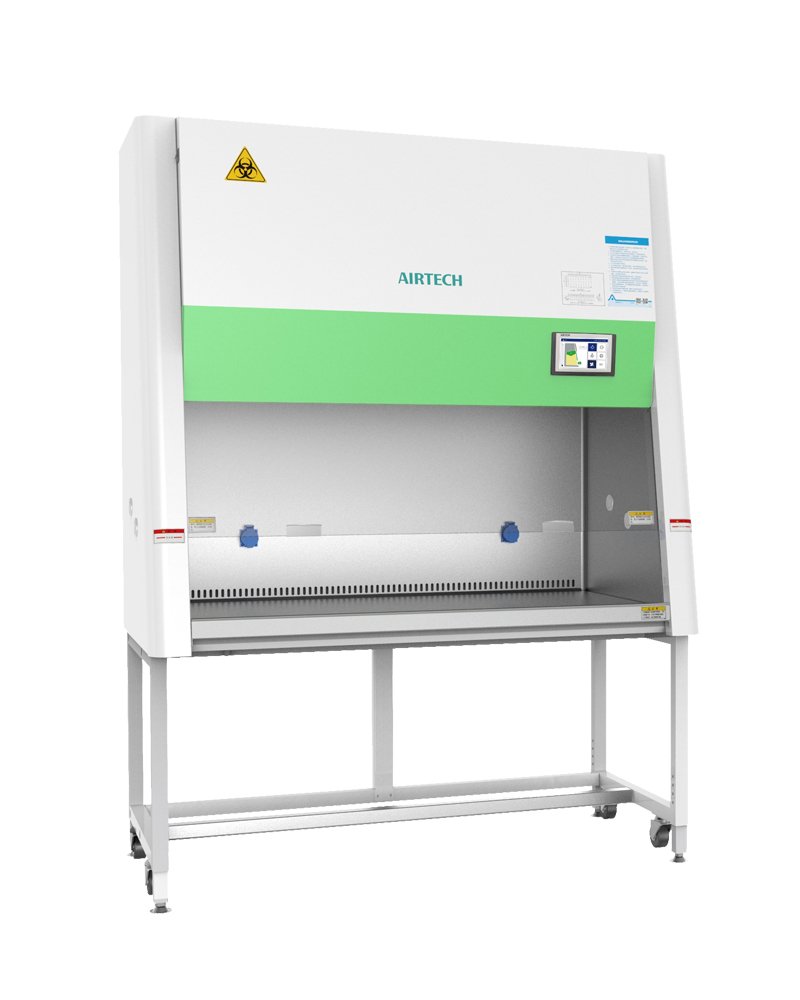

Class II Type A2, EN12469（05 series)

Intelligent  smartflow control system

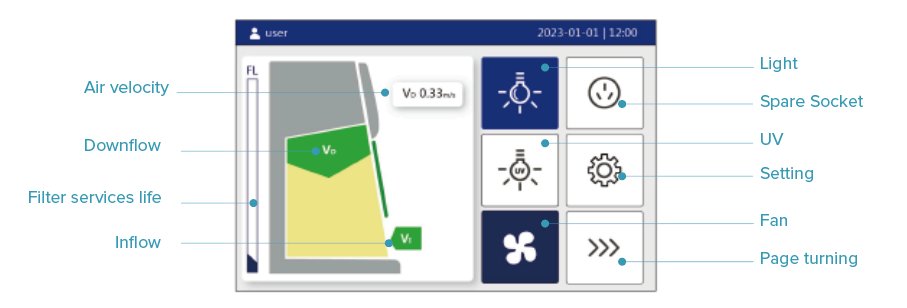

7-inch touch screen display show the Biosafety Cabinet status in real time,inflow and down air velocity, air filter pressure, check equipment information and provide repair information and time.

1. Angled color LCD display is easy to read the BSC working status.

2. Display blower, LED light, UV light and socket works condition.

3. Display downflow velocity  and inflow velocity, the velocity display accuracy is 0.001m/s, This is based on 2 independent sets of velocity sensors.

4. Display filter life in percentage,  it reminds the user to  in safe condition to operate the BSC and change the filter in time.

5. Display time it is easy to know the operation time.

6. Display UV timer.

7. Built-in clock, stopwatch,and countdown timer functions for user.

8. Three levels of password management, more effective control of the use of Biosafety Cabinets.

9. Built-in RS485 signal interface for convenient expansion.

Alarm

1. Inflow velocity alarm                  3. Downflow velocity alarm         5. Sash height alarm

2. Filter high resistance alarm        4. Blower failure alarm                 6.  UV life time  alarm

ECO mode

1. Multiple built-in operating modes, including on-off mode and UV lamp operating mode, etc.

2. Assessed the risk,the fan selected the ECO mode. When all sliding windows are closed, the Biosafety cabinet will save 30% energy consumption.

3. When shut down front sash and BSC will turn to ECO mode automatically.  It reduces the speed of the motor blower to save the energy.

4. Using ECO Mode can reduce the open-close time. At the same time of saving energy, it saves time for self-purification, UV disinfection and also for cleaning works.

  Class II Type A2, EN12469（05 series)
