CryoMaster Series Liquid nitrogen dewars are designed for liquid phase storage of biological samples in cryogenic vials and boxes. The storage capacity range is 750 to 6,000 pcs of 2ml vials.
2ml vail inventory racks are supplied as standard. Inventory system for 5ml vials, 25ml blood bags and 50ml blood bags are optional upon request.
Features
1. Large capacity storage of vials or blood bags
2. Ultra-low liquid nitrogen consumption
3. Lockable lid to prevent unauthorized access
4. Space-saving and light in weight
5.TWO Year Parts Warranty, FIVE Year Vacuum Warranty

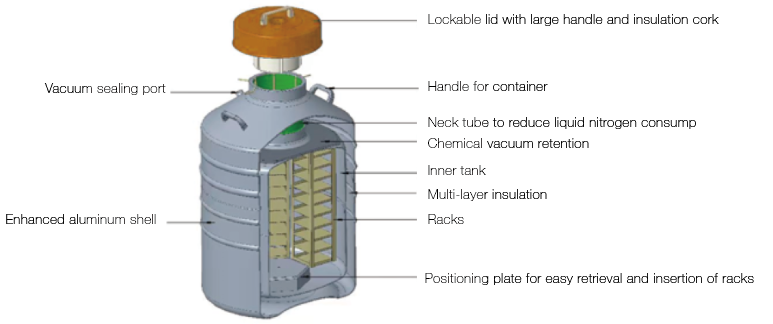

Structure Diagram
Accessories

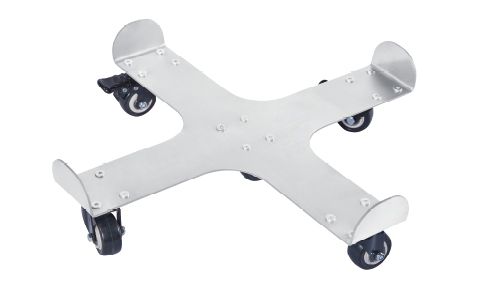

1. Roller base is supplied as optional, for easy movement of container.
2. CryoMonitor 2000TL is optional monitor for liquid nitrogen level and temperature.
Cassette
BBC-A
| Model | CryoMaster 750 | CryoMaster 900 | CryoMaster 2400 | CryoMaster 3000 | CryoMaster 3600 | CryoMaster 4800 | CryoMaster 6000 | |
| Maximum Storage Capacity | ||||||||
| 1.2 & 2ml vial | 1.2 &2ml vials (25/100-place box) | 750 | 900 | 2400 | 3000 | 3600 | 4800 | 6000 |
| Number of racks | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 2" Boxes per rack | 5 | 6 | 4 | 5 | 6 | 8 | 10 | |
| 5ml vial | 5ml vials (81-place box) | — | — | 972 | 972 | 1458 | 1944 | 2430 |
| Number of racks | — | — | 6 | 6 | 6 | 6 | 6 | |
| 3.75" Boxes per rack | — | — | 2 | 2 | 3 | 4 | 5 | |
Cassette BBC-A | Numbers of blood bag | — | — | 168 | 252 | 252 | 336 | 420 |
| Number of racks | — | — | 6 | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | 2 | 3 | 3 | 4 | 5 | |
| Blood bags per layer | — | — | 14 | 14 | 14 | 14 | 14 | |
Cassette BBC-B | Numbers of blood bag | — | — | 84 | 126 | 168 | 168 | 252 |
| Number of racks | — | — | 6 | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | 1 | 3 | 2 | 2 | 3 | |
| Blood bags per layer | — | — | 14 | 7 | 14 | 14 | 14 | |
Cassette BBC-C | Numbers of blood bag | — | — | 48 | 48 | 48 | 96 | 96 |
| Number of racks | — | — | 6 | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | 1 | 1 | 1 | 2 | 2 | |
| Blood bags per layer | — | — | 8 | 8 | 8 | 8 | 8 | |
Cassette BBC-D | Numbers of blood bag | — | — | — | 36 | 36 | 36 | 72 |
| Number of racks | — | — | — | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | — | 1 | 1 | 1 | 2 | |
| Blood bags per layer | — | — | — | 6 | 6 | 6 | 6 | |
Cassette BBC-E | Numbers of blood bag | — | — | 30 | 30 | 30 | 60 | 60 |
| Number of racks | — | — | 6 | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | 1 | 1 | 1 | 2 | 2 | |
| Blood bags per layer | — | — | 5 | 5 | 5 | 5 | 5 | |
| Numbers of blood bag | — | — | — | 30 | 30 | 30 | 30 | |
| Number of racks | — | — | — | 6 | 6 | 6 | 6 | |
| Layers per rack | — | — | — | 1 | 1 | 1 | 1 | |
| Blood bags per layer | — | — | — | 5 | 5 | 5 | 5 | |
| Performance | ||||||||
| LN2 capacity (L) | 35 | 50 | 65 | 95 | 120 | 145 | 175 | |
| Static evaporation rate (L/day) | 0.36 | 0.36 | 0.78 | 0.81 | 0.85 | 0.85 | 0.87 | |
| Static holdover time (day) | 97 | 139 | 83 | 117 | 141 | 171 | 201 | |
| Dimensions | ||||||||
| Neck opening (mm) | 125 | 125 | 216 | 216 | 216 | 216 | 216 | |
| Overall height (mm) | 805 | 820 | 785 | 840 | 905 | 1040 | 1090 | |
| Outer diameter (mm) | 451 | 508 | 678 | 678 | 678 | 678 | 678 | |
| Weight empty (kg) | 20.6 | 28.5 | 49.2 | 53.3 | 58.1 | 67.1 | 72.3 | |
| Weight full (kg) | 49 | 69 | 102 | 130 | 155 | 185 | 214 | |
| Inventory rack for cryobox (standard) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| / | ||||||||
| 25ml blood bag | Cassette | — | — | BBC-25 | BBC-25 | BBC-25 | BBC-25 | BBC-25 |
| Rack | — | — | DBR-25-14-2 | DBR-25-14-3 | DBR-25-14-3 | DBR-25-14-4 | DBR-25-14-5 | |
| 50ml blood bag | Cassette | — | — | BBC-50 | BBC-50 | BBC-50 | BBC-50 | BBC-50 |
| Rack | — | — | DBR-50-14-1 | DBR-50-7-3 | DBR-50-14-2 | DBR-50-14-2 | DBR-50-14-3 | |
| 250ml blood bag | Cassette | — | — | BBC-250 | BBC-250 | BBC-250 | BBC-250 | BBC-250 |
| Rack | — | — | DBR-250-8-1 | DBR-250-8-1 | DBR-250-8-1 | DBR-250-8-2 | DBR-250-8-2 | |
| 500ml blood bag | Cassette | — | — | N/A | BBC-500 | BBC-500 | BBC-500 | BBC-500 |
| Rack | — | — | N/A | DBR-500-6-1 | DBR-500-6-1 | DBR-500-6-1 | DBR-500-6-2 | |
| 200ml blood bag | Cassette | — | — | BBC-200 | BBC-200 | BBC-200 | BBC-200 | BBC-200 |
| Rack | — | — | DBR-200-5-1 | DBR-200-5-1 | DBR-200-5-1 | DBR-200-5-2 | DBR-200-5-2 | |
| 700ml blood bag | Cassette | — | — | N/A | BBC-700 | BBC-700 | BBC-700 | BBC-700 |
| Rack | — | — | N/A | DBR-700-5-1 | DBR-700-5-1 | DBR-700-5-1 | DBR-700-5-1 | |
| Optional Accessories | ||||||||
| Roller base | RB-30 | RB-47 | RB-65 | RB-65 | RB-65 | RB-65 | RB-65 | |
| Liquid level & temperature monitoring | CryoMonitor 1000TL, CryoMonitor 2000TL, Cloud service | |||||||
* Page parameters for reference only.
| Name | Description | |||
| CryoMonitor 1000P | Plug Type Liquid Level & Temp Monitor (optional) | |||
| CryoMonitor 1000 | Temperature monitor (optional) | |||
| Stainess Steel Racks | Made in SUS304 (standard) | |||
| Cryogenic Box | PC material (standard) | |||
| Roller Base | Made in SUS304,different sizes available (optional) | |||
