LN2 supply tank, Self-pressurization

View Other Series

CryoCenter Series are high efficiency storage containers of liquid nitrogen. It is made in high quality stainless steel SUS304, ensures them to be used in most rigorous environment for long time.


A low pressure is generated by vaporizing small amount of liquid nitrogen, to discharge LN2 & supply LN2 to other containers or equipment, such as dewar, vapor freezer, or controlled rate freezer.

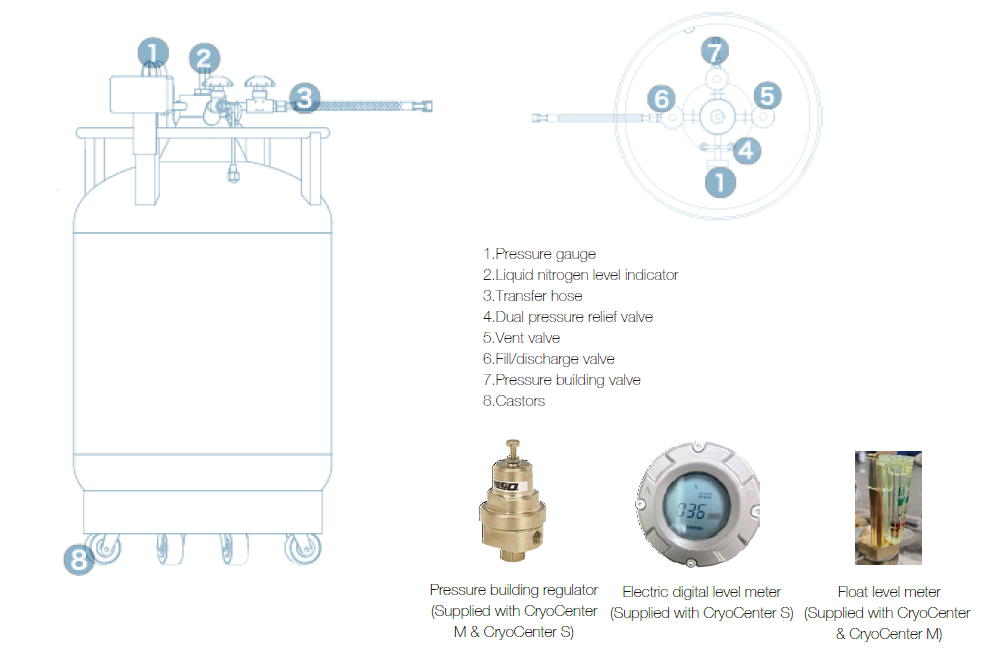

The CryoCenter Series containers are supplied with filling/discharge valve, pressure relief valve and vaporize valve. Dual pressure relief valve design for safety. All models are supplied with casters for convenient movement.


Features:

1. Ultra-low liquid nitrogen consumption

2. SUS304 construction & durable for long term use

3. Advanced digital display liquid level meter available

4. Pressure building regulator available for automatic filling applications

5. All models supplied with casters for convenient movement

CryoCenter   M Series:



Supplied   with pressure building regulator & float type liquid level meter, for   auto filling of cryogenic freezer & controlled rate freezer
ModelCryoCenter 200MCryoCenter 240MCryoCenter 300MCryoCenter 500M
Liquid   nitrogen capacity (L) 200240300500
Infusion   volumes (L/min) ≥10≥10≥15≥15
Static   evaporation (％)* 0.60.60.80.8
Overall   height  (mm) 1280158014101500
External   diameter  (mm) 656656806958
Weight empty   (kg) 96130205265
Weight liquid   full (kg) 259325449672
Standard   working pressure (psig/bar/MPa) 13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve   pressure (psig/bar/MPa) 22/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.15
Bursting disc   burst pressure (psig/bar/MPa) 51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure   gauge indicating range (MPa) 0～0.250～0.250～0.250～0.25
Fill/   discharge valve, vent valve, pressure building valveYesYesYesYes
Pressure   building regulatorYesYesYesYes
Pressure   relief value (Safety valve) Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level   meter, float typeYesYesYesYes
Liquid level   meter, electronic digital display type////
Connection   portCGA295CGA295CGA295CGA295
CasterYesYesYesYes
Hose, 2 meterYesYesYesYes
CryoCenter   S Series:



Supplied   with pressure building regulator & electric digital liquid level meter,   for auto filling of cryogenic freezer & controlled rate freezer
ModelCryoCenter 200SCryoCenter 240SCryoCenter 300SCryoCenter 500S
Liquid   nitrogen capacity (L) 200240300500
Infusion   volumes (L/min) ≥10≥10≥15≥15
Static   evaporation (％)* 0.60.60.80.8
Overall   height  (mm) 1280158014101500
External   diameter  (mm) 656656806958
Weight empty   (kg) 96130205265
Weight liquid   full (kg) 259325449672
Standard   working pressure (psig/bar/MPa) 13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve   pressure (psig/bar/MPa) 22/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.15
Bursting disc   burst pressure (psig/bar/MPa) 51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure   gauge indicating range (MPa) 0～0.250～0.250～0.250～0.25
Fill/   discharge valve, vent valve, pressure building valveYesYesYesYes
Pressure   building regulatorYesYesYesYes
Pressure   relief value (Safety valve) Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level   meter, float type////
Liquid level   meter, electronic digital display typeYesYesYesYes
Connection   portCGA295CGA295CGA295CGA295
CasterYesYesYesYes
Hose, 2 meterYesYesYesYes
CryoCenter   Series:






Supplied   with float type liquid level meter, without pressure building regulator, for   liquid nitrogen storage.



ModelCryoCenter 30CryoCenter 50CryoCenter 100CryoCenter 200CryoCenter 240CryoCenter 300CryoCenter 500
Liquid   nitrogen capacity (L) 3050100200240300500
Infusion   volumes (L/min) ≥5≥5≥5≥10≥10≥15≥15
Static   evaporation (％)* 3.22.21.20.60.60.80.8
Overall   height  (mm) 85096011201280158014101500
External   diameter  (mm) 404455556656656806958
Weight empty   (kg) 30386396130205265
Weight liquid   full (kg) 5479144259325449672
Standard   working pressure (psig/bar/MPa) 13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve   pressure (psig/bar/MPa) 22/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.1522/1.5/0.15
Bursting disc   burst pressure (psig/bar/MPa) ///51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure   gauge indicating range (MPa) 0～0.250～0.250～0.250～0.250～0.250～0.250～0.25
Fill/   discharge valve, vent valve, pressure building valveYesYesYesYesYesYesYes
Pressure   building regulator ///////
Pressure   relief value (Safety valve) Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level   meter, float typeYesYesYesYesYesYesYes
Liquid level   meter, electronic digital display type///////
Connection   portCGA295CGA295CGA295CGA295CGA295CGA295CGA295
CasterYesYesYesYesYesYesYes
Hose, 2 meterYesYesYesYesYesYesYes


  CE-Liquid Nitrogen Container

  CryoCenter series_self-pressurized container
