4°C Blood Bank Refrigerator

ANTECH BloodSafe series blood bank refrigerators are designed to meet highest requirements for the secure storage of blood and blood components. It provides excellent temperature performance, low noise and decreased energy consumption. High quality SECOP compressor and natural hydrocarbon refrigerant are used for optimized temperature performance and energy efficiency.

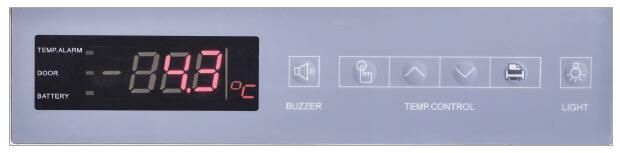

TC-100 Controller

Microprocessor electronic controller for BloodSafe series blood bank refrigerators, fitted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.

Performance

1.Forced air cooling for excellent temperature uniformity

2.Variable (cycle) defrost

3.Intelligent microprocessor controller with LED digital display resolution 0.1

4.Magnetically sealed door with rapid cool-down mode after door opening

5.Dual sensor design: Independent control sensor and display sensor

Ergonomic Design

1.Door-activated and exterior switch-activated interior LED lighting

2.Self-close door for convenient operation

3.SUS304 interior for easy cleaning

4.SUS304 sliding drawers for convenient use

5.Ultra-quite design reduces noise level

Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2.No impact on ozone depletion, and very low Global Warming Potential (GWP)

3.High efficiency cooling system for lower energy consumption and carbon emission

Alarms

1.High temperature

2.Low temperature

3.Open door

4.Power failure

5.Sensor error

6.Low battery

Safety

1.Build-in data storage and USB port for download

2.Quick check of max/min temperature in 24 hours

3.Password protection avoids key parameters unauthorized change

4.Safety door lock, preventing unauthorized access

5.Access port for additional temperature probe

6.Remote alarm contacts

ModelMBR-658MBR-1008MBR-1408
Main specificationsTypeUprightUprightUpright
Temperature range (℃)444
Climate typeNNN
Capacity (L)63811401410
Blood bag storage qty (450ml)390624780
Intermal W*D*H (mm)660×690×14001180×690×14001460×690×1400
Extermal W*D*H (mm)780×827×19451300×827×19451580×827×1945
Weight(KGs)174277298
Insulation (mm)606060
Cooling type Forced air Forced air Forced air
DefrostAuto   defrostAuto   defrostAuto   defrost
RefrigerantR290R290R290
Control systemControllerTC-100TC-100TC-100
DisplayLED   digital LED   digital LED   digital
Display accuracy 0.10.10.1
PowerPower   supply(V/Hz)220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60
Rated power (W)260;   260; 250400;   400; 420400;   400; 420
Rated current (W)1.5;   1.5; 2.62.4;   2.4; 4.82.4;   2.4; 4.8
Data memory High/low   temp checkYesYesYes
USB portYesYesYes
Chart recorderOptionalOptionalOptional
Alarm functionsVisible/audible   alarm YesYesYes
High/low temp alarmYesYesYes
Remote alarm contactYesYesYes
Sensor failureYesYesYes
Door open YesYesYes
Low batteryYesYesYes
Power failureYesYesYes
Backup for alarm (Hrs)244848
Other featureDoor   lock with keyYesYesYes
Inner LED lightYesYesYes
Adjustbale footYesYesYes
CasterYesYesYes
Test access portΦ20mm   x 1Φ20mm   x 1Φ20mm   x 1
Sliding drawers Qty61212
Door Qty122
MaterialExteriorCoated   steelCoated   steelCoated   steel
Interior SUS304SUS304SUS304
Sliding drawerSUS304SUS304SUS304
Door 3-layer   glass3-layer   glass3-layer   glass
Insulation PolyurethanePolyurethanePolyurethane
ShippingGross   weight (KGs)203312338
Packing WxDxH (mm)840x870x21501340x870x21501640x870x2150
Volume (m3)1.572.513.07
