-25°C Laboratory Freezer

View Other Series

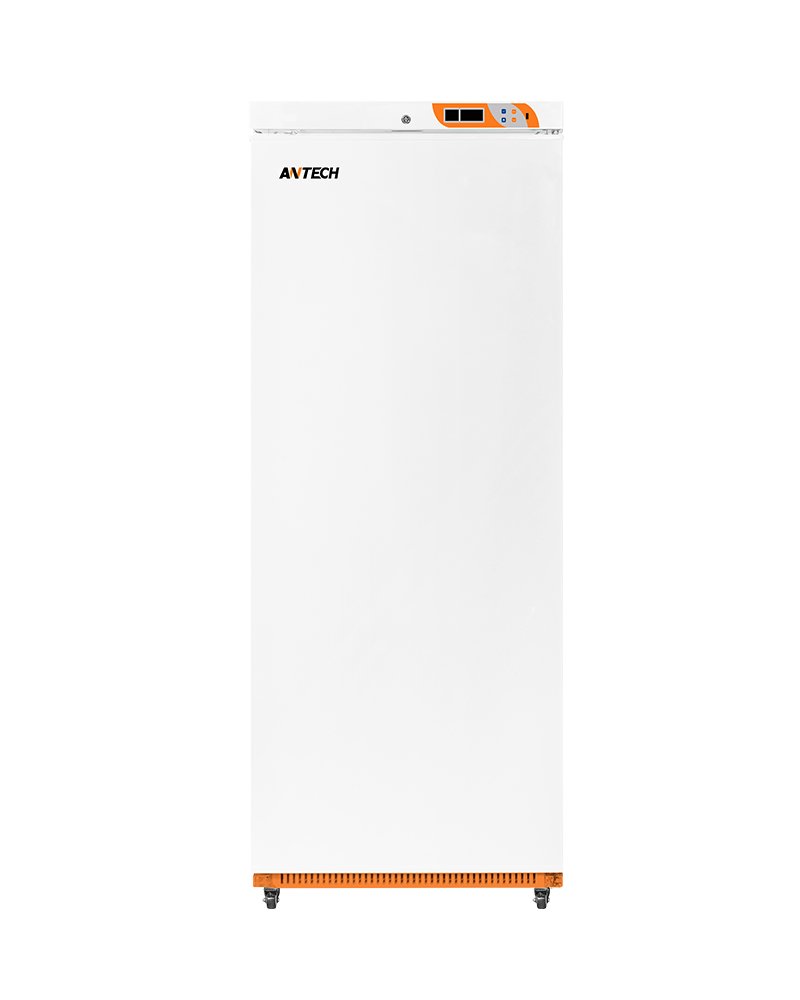

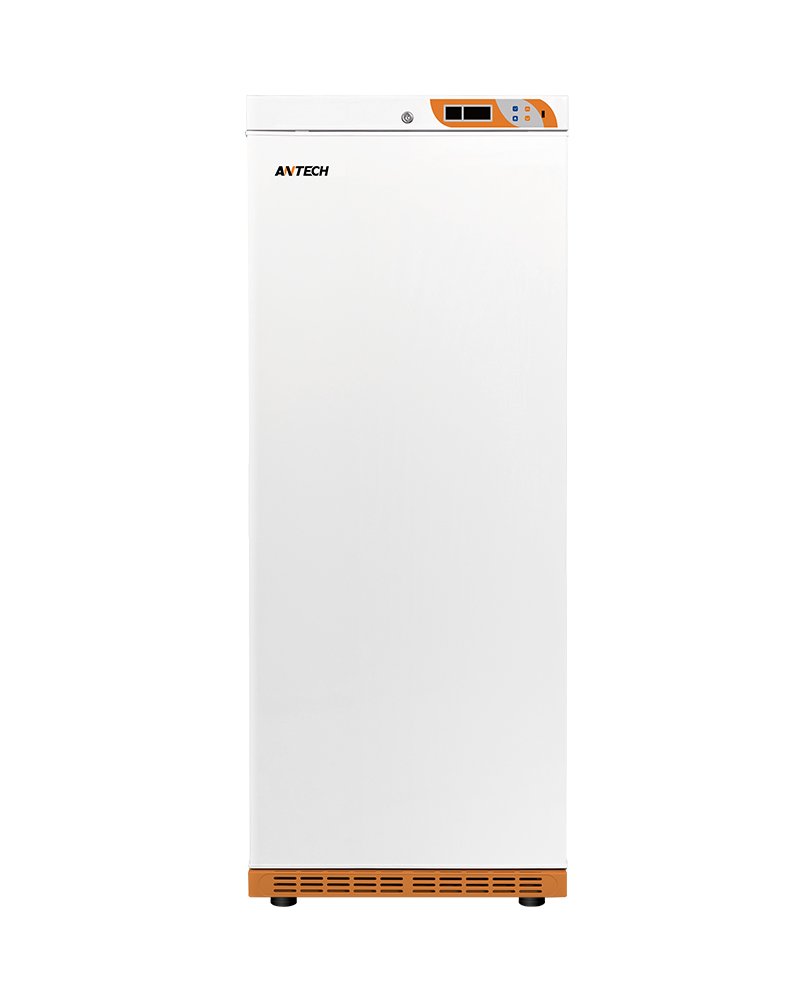

The professional LabSafe series laboratory Freezer, specifically developed to be used by laboratories, hospitals, and pharmacies, ensure optimal storage conditions for temperature sensitive medical products and biological material, meeting the highest requirement for accurate controlled cold storage. High density solid door (forming door) is used for excellent insulation. LabSafe freezers are compliant with main international requirements, including CE, UL, etc.

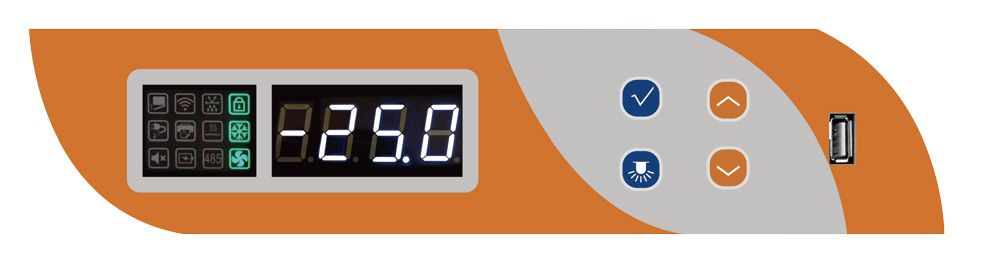

TC-200 Controller

Microprocessor electronic controller for LabSafe series laboratory freezers, fitted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.


Performance

1.Intelligent microprocessor controller TC-200

2.Dual sensor system: display sensor in aluminum block to simulate real product temperature. Control sensor in air for accurate control.

3.Optimized direct cooling system & manual defrost

4.Rapid temperature recovery after door opening


Ergonomic Design

1.Self-close door for convenient operation

2.Left/right side open revisable door to suit various space

3.Ultra-quite design reduces noise level


Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2.CFC-Free polyurethane foaming insulation

3.High efficiency cooling system for lower energy consumption and carbon emission

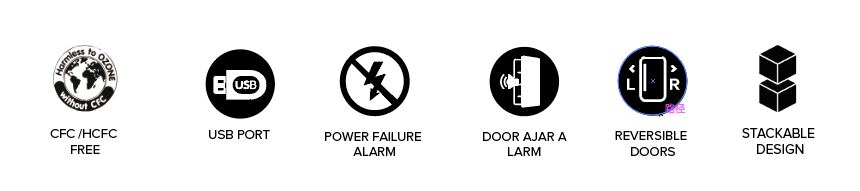

Alarms

1.High temperature

2.Low temperature

3.Open door

4.Power failure

5.Sensor error

6.Low battery


Safety

1.Build-in data storage and USB port for download

2.Quick check of max/min temperature in 24 hours

3.Password protection avoids key parameters unauthorized change

4.Safety door lock, preventing unauthorized access

5.Access port for additional temperature probe

6.Remote alarm contacts


ModelMDF-25U60MDF-25U150MDF-25U270MDF-25U400MDF-25U600
Main specificationsTypeDesktopUnder-counterUprightUprightUpright
Temperature range (℃) -10～-25 -10～-25 -10～-25 -10～-25 -10～-25
Cooling typeDirect   coolingDirect   coolingDirect   coolingDirect   coolingDirect   cooling
DefrostManualManual ManualManual Manual
Climate typeNNNNN
Capacity (L)65120280380550
Intermal W*D*H (mm)410×450×420500×540×570500×450×1290500×520×1550 645×530×1645
Extermal W*D*H (mm)510×590×660600×680×812 600×560×1585 600×680×1840775×700×1945
Weight（KGs）3343617495
Insulation (mm)5050505060
RefrigerantR600aR600aR600a R290 R290
Control systemControllerTC-200TC-200TC-200TC-200TC-200
DisplayLED   digital LED   digital LED   digital LED   digital LED   digital
Display accuracy 0.10.10.10.10.1
PowerPower   supply (V/Hz)220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60
Rated power (W)95;   95; 115120;   140; 170220;   220; 200220;   220; 230250;   250; 230
Rated current (A)0.65;   0.65; 0.851.1;   1.3; 1.71.7;   1.7; 1.81.7;   1.7; 2.01.7;   1.7; 2.0
Data memory High/low   temp checkYesYesYesYesYes
USB portYesYesYesYesYes
Alarm functionsVisible/audible   alarm YesYesYesYesYes
High/low tempYesYesYesYesYes
Sensor failureYesYesYesYesYes
Door open YesYesYesYesYes
Low batteryYesYesYesYesYes
Power failureYesYesYesYesYes
Backup for alarm (Hrs)4848484848
Remote alarm contactYesYesYesYesYes
Other featureDoor   lock with keyYesYesYesYesYes
Inner LED lightYesYesYesYesYes
Adjustbale footYesYesYesN/AN/A
CasterN/AN/AN/AYesYes
Test access portΦ20mm   x 1Φ20mm   x 1Φ20mm   x 1Φ20mm   x 1Φ20mm   x 1
Adjustable shelves Qty12555
Shelf at bottom Qty11111
MaterialExterior Pre-coated   steelPre-coated   steelPre-coated   SteelPre-coated   steelPre-coated   steel
Interior Pre-coated   aluminumPre-coated   aluminumPre-coated   aluminumPre-coated   aluminumPre-coated   aluminum
DoorSolid   doorSolid   doorSolid   doorSolid   doorSolid   door
InsulationPolyurethanePolyurethanePolyurethanePolyurethanePolyurethane
ShippingGross   weight (KGs)40517492113
Packing WxDxH (mm)570x620x760 660x620x910 660x620x1630 660x700x1900830x750x2000
Volume (m³)0.270.370.670.881.25

* Air temperature in chamber will increase around 8~10℃ during  auto-defrost.

  CE-CGS-freezer

  LabSafe-MDF-25U60

  LabSafe-MDF-25U150

  LabSafe-MDF-25U270-400-600

  -25
