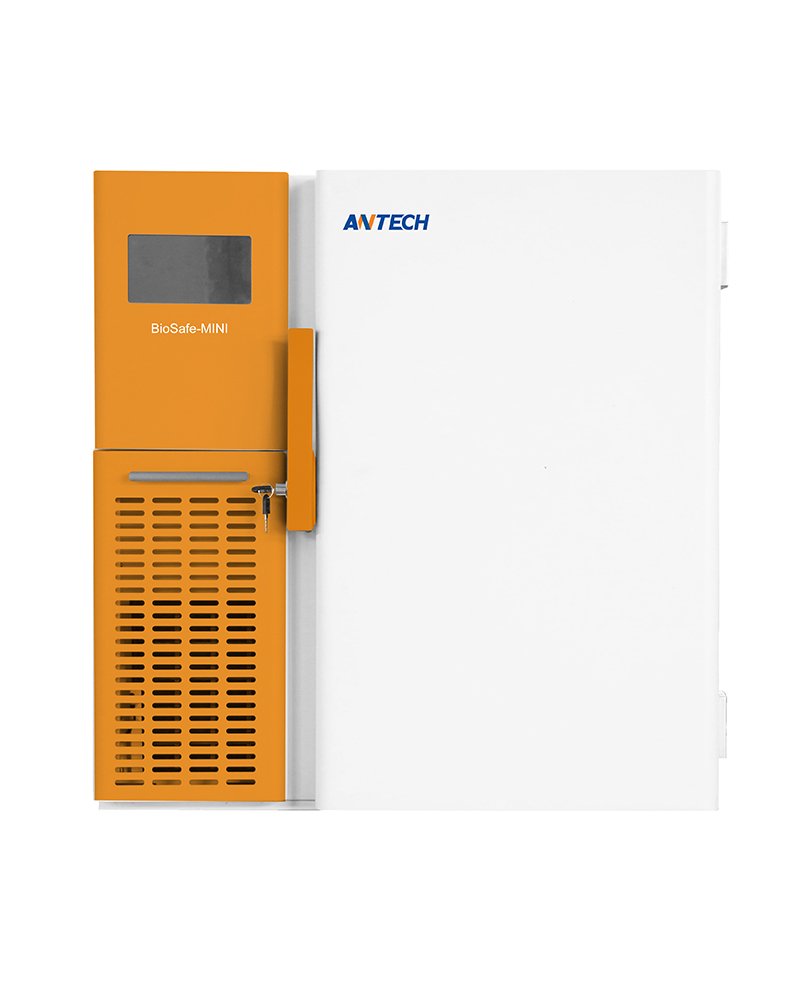

-86°C ULT Freezer, BioSafe-MINI & Chest Freezer

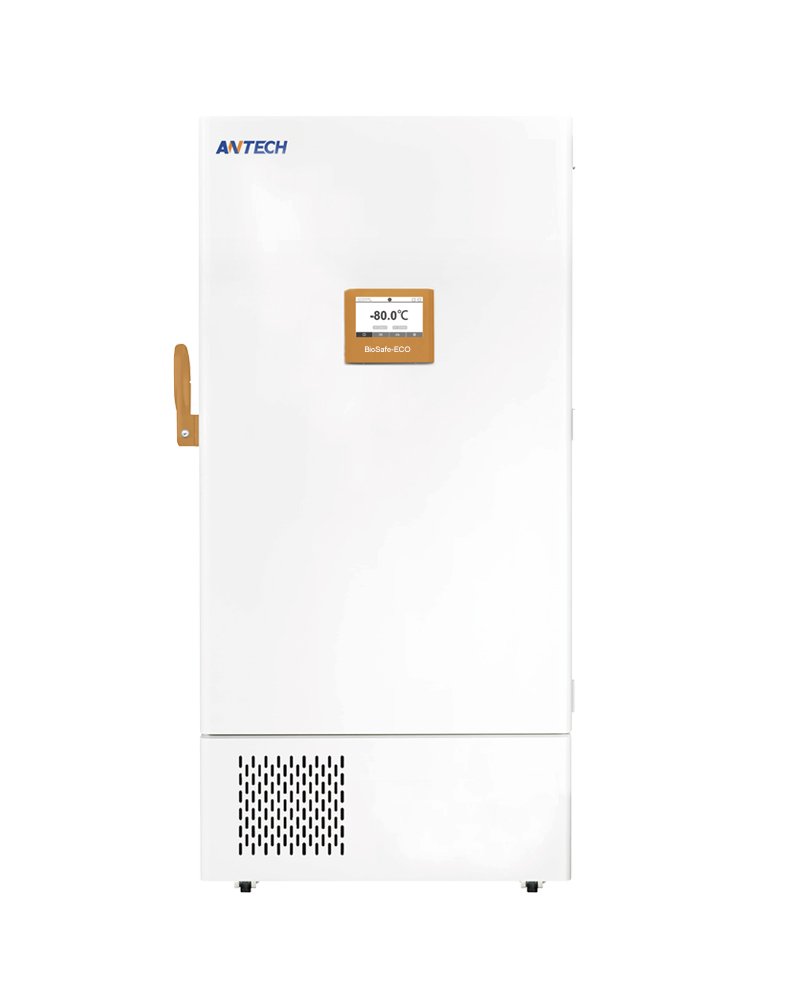

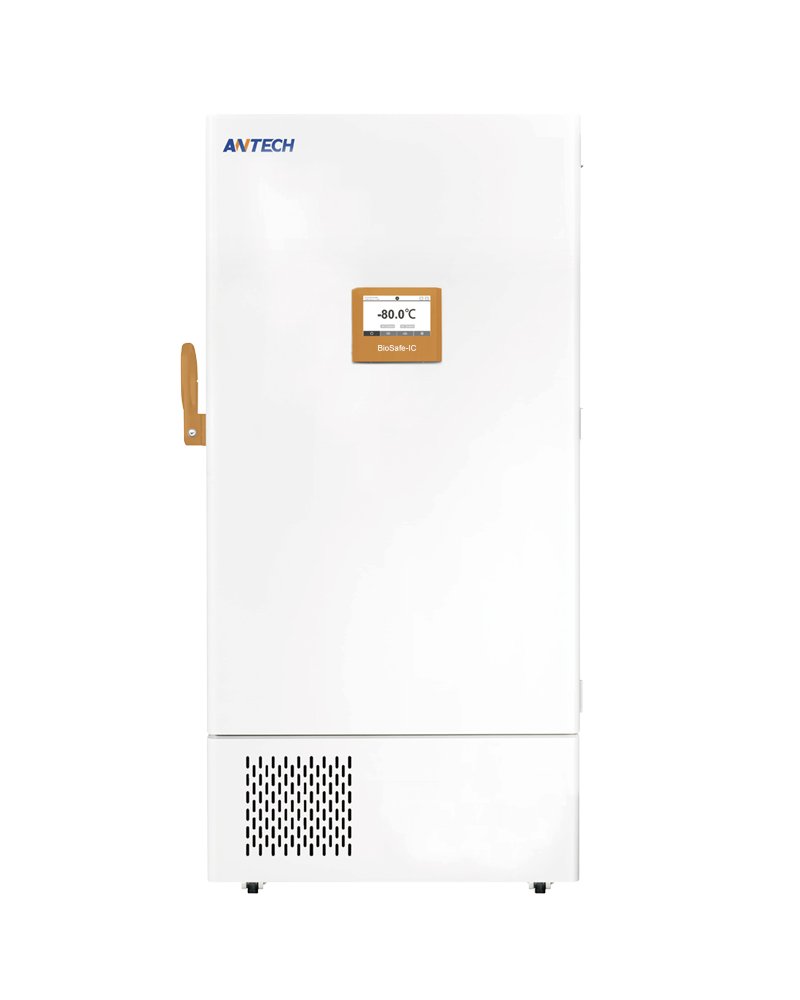

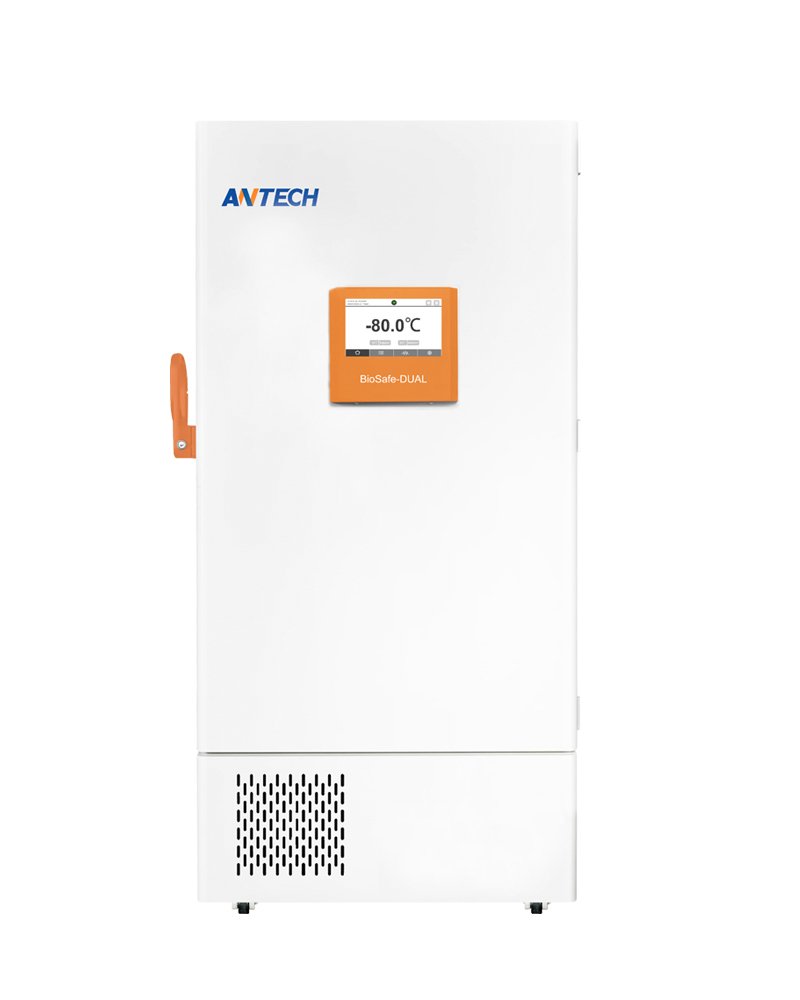

ANTECH offers advanced BioSafe ULT freezers with optimized cooling system and ergonomic design. Both upright freezers and chest freezers are available, from 100 liter compact freezer to 988 liter large volume biobanking freezer. Various of high efficiency cooling systems to meet different requirements of users. Cutting age inverter technology (BioSafe-IC) and dual compressor cooling technology (BioSafe-DUAL) are adopted on ANTECH ULT freezers, providing lowest energy consumption & highest level protection.

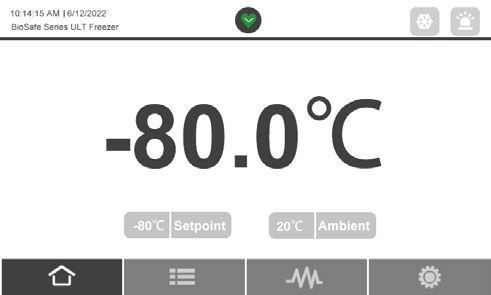

TC-300 touch screen controller

TC-300 smart control system is adopted for easy observation and convenient operation.

  •    7” LCD touch screen: sensitive touch, user-friendly HIM;

  •    Large display of chamber temperature, easy observation at distance;

  •    Status icon to show freezer situation at first sight: normal or abnormal;

  •    Password administration to prevent unauthorized change of settings;

  •    Show temperature curve on touch screen;

   Temperature and event data storage and USB port for download.

Performance

1.Optimized cooling system & high efficiency hydrocarbon refrigerant.

2.SECOP brand compressor & EBM brand blower.

3.VIP (vacuum insulation panel) + high density polyurethane forming for insulation.

Ergonomic Design

1.7-inch touch screen for easy operation

2.Forming inner doors with door seal for better insulation and less frost

3.Adjustable stainless steel shelves to load different size products

4.Pressure release port for easy opening of outer door

5.Ultra-quite design reduces noise level

6.Optional sliding drawer rack & side access rack for 2ml vials, 5ml vials or SBS boxes

Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2.CFC-Free polyurethane foaming insulation

3.High efficiency cooling system for lower energy consumption and less carbon emission

Alarms

1.High temperature

2.Low temperature

3.High ambient temperature

4.Open door

5.Power failure

6.Sensor error

7.Low battery

Safety

1.Build-in data storage and USB port for download

2.Temperature quick check via temperature curve

3.Password protection avoids key parameters unauthorized change

4.Safety door lock, preventing unauthorized access

5.Access port for additional temperature probe

6.Remote alarm contacts

7.Optional online monitoring system

8.Optional CO2/LN2 backup system


ModelMDF-86U108MDF-86U58MDF-86U158MDF-86C118MDF-86C458MDF-86C728
Main specificationsTypeUnder-counter,   uprightUprightUprightChestChestChest
Cooling technologySingle compressorSingle compressorSingle compressorSingle compressorCascade coolingCascade cooling
Temperature setting range (°C) -40~-86-40~-86-40~-86 -40~-86 -40~-86 -40~-86
Climate typeNNNNNN
Capacity (L)8858158130495746
2" box  storage Qty (Pcs)603610896360585
Net weight (KGs)857513098242275
Intermal W×D×H (mm)320x450x610364x405x409460x455x800630×440×4701310x600x6301310×740×770
Extermal W×D×H (mm)794x676X812540X620X1115700x700x1580850×740×10231930x780x9001930×997×1035
Door entrance limit (≥mm)676620700740780997
Cooling typeDirectDirectDirectDirectDirectDirect
DefrostManualManualManualManualManualManual
RefrigerantMixed gasMixed gasMixed gasMixed gasHydrocarbon gasHydrocarbon gas
Number of compressor111122
Control & display systemControllerTC-300TC-300ETC-300ETC-300TC-300TC-300
Display7" LCD touch   screenLEDElectronic7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen
Temperature display accuracy 0.10.10.10.10.10.1
Password protectionYesYesYesYesYesYes
PowerPower   supply (V/Hz)220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60
Rated power (W)410;   460; 520500;   500; 500500;   500; 500480; 480; 540900;   850; 780980;   900; 820
Rated current (A)2.3; 2.6; 6.63.2; 3.2; 6.03.2; 3.2; 6.02.8; 2.8; 6.77.0; 5.0; 8.87.2; 5.8; 9.0
Data memory & monitoring USB   portYesN/AN/AYesYesYes
Chart recorderOptionalOptionalOptionalOptionalOptionalOptional
Alarm functionsVisible/audible   alarm YesYesYesYesYesYes
High/Low temperatureYesYesYesYesYesYes
Hot condenserYesN/AN/AYesYesYes
Power failure YesYesYesYesYesYes
Sensor failureYesYesYesYesYesYes
High ambient temperatureYesN/AN/AYesYesYes
Door openYesYesYesYesYesYes
Remote alarm contactYesYesYesYesYesYes
AccessoriesInner door223N/A22
CastersYesYesYesYesYesYes
Test access portΦ20mm   x 2Φ20mm x 1Φ20mm x 1Φ20mm   x 2Φ20mm   x 2Φ20mm   x 2
Adjustable shelves112N/AN/AN/A
Safety door lockYesYesN/AYesYesYes
Pressure equalization portManualN/AN/AManualAuto   x 1 & manual x 1Auto   x 1 & manual x 1
Freezer rackOptionalN/AN/AOptionalOptionalOptional
Rack type (DxH)3x5N/AN/A1x81x101x13
Rack Qty4N/AN/A123645
CO2/LN2 backup systemOptionalOptionalOptionalOptionalOptionalOptional
MaterialExteriorPre-coated steelPre-coated steelPre-coated steelPre-coated steelPre-coated steelPre-coated steel
InteriorPre-coated steelSUSSUSStainless stellSUSSUS
InsulationPolyurethanePolyurethanePolyurethanePolyurethanePolyurethanePolyurethane
Vacuum insulation panel (VIP)YesN/AN/AYesYesYes
Cabinet insulation thickness (mm)9090120909090
Outer door thinkness (mm)9090120909090
ShippingGross   weight (KGs)10595160116278318
Packing    W×D×H (mm)850x730x953610x700x1240780x800x1710930x780x11602010×880×10302010×1095×1165
Volume (m³)0.590.531.070.841.822.56
