-86 ULT Freezer, BioSafe-DUAL

ANTECH offers advanced BioSafe ULT freezers with optimized cooling system and ergonomic design. Both upright freezers and chest freezers are available, from 100 liter compact freezer to 988 liter large volume biobanking freezer. Various of high efficiency cooling systems to meet different requirements of users. Cutting age inverter technology (BioSafe-IC) and dual compressor cooling technology (BioSafe-DUAL) are adopted on ANTECH ULT freezers, providing lowest energy consumption & highest level protection.

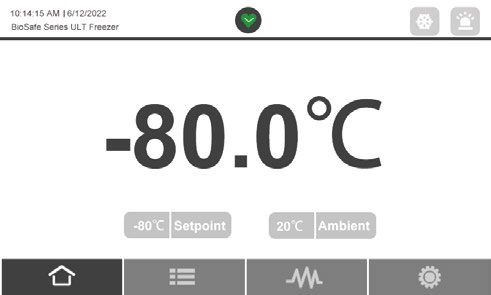

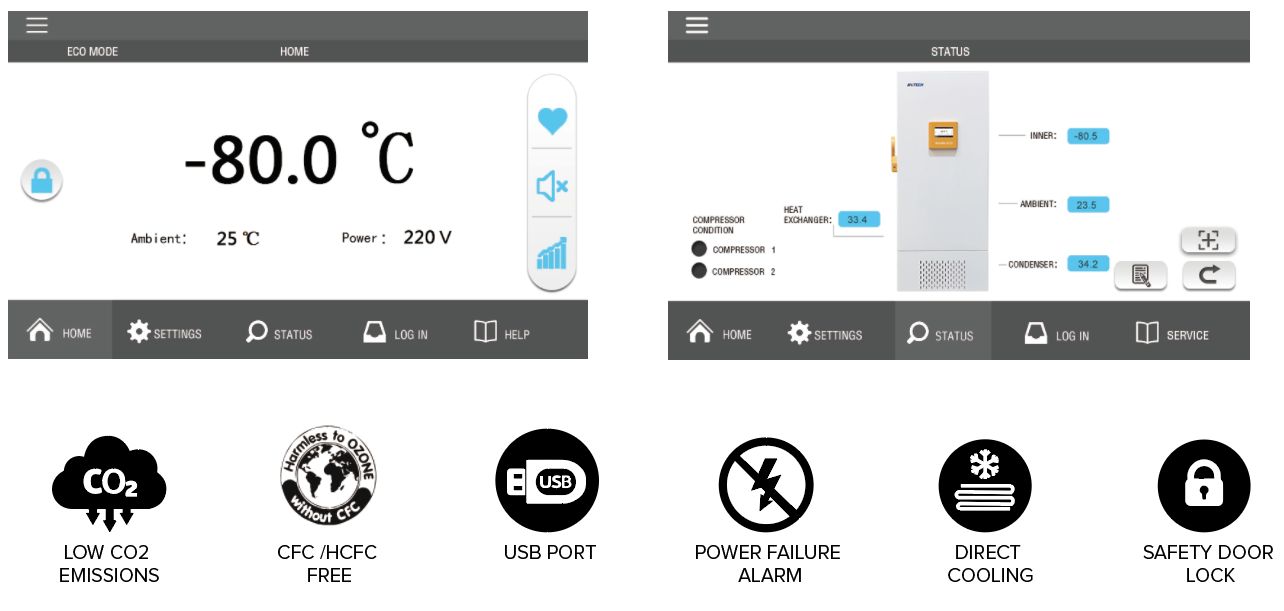

TC-300 touch screen controller

TC-300 smart control system is adopted for easy observation and convenient operation.

  •    7” LCD touch screen: sensitive touch, user-friendly HIM;

  •    Large display of chamber temperature, easy observation at distance;

  •    Status icon to show freezer situation at first sight: normal or abnormal;

  •    Password administration to prevent unauthorized change of settings;

  •    Show temperature curve on touch screen;

   Temperature and event data storage and USB port for download.

Performance

1.Optimized cooling system & high efficiency hydrocarbon refrigerant.

2.SECOP brand compressor & EBM brand blower.

3.VIP (vacuum insulation panel) + high density polyurethane forming for insulation.

Ergonomic Design

1.7-inch touch screen for easy operation

2.Forming inner doors with door seal for better insulation and less frost

3.Adjustable stainless steel shelves to load different size products

4.Pressure release port for easy opening of outer door

5.Ultra-quite design reduces noise level

6.Optional sliding drawer rack & side access rack for 2ml vials, 5ml vials or SBS boxes

Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2.CFC-Free polyurethane foaming insulation

3.High efficiency cooling system for lower energy consumption and less carbon emission

Alarms

1.High temperature

2.Low temperature

3.High ambient temperature

4.Open door

5.Power failure

6.Sensor error

7.Low battery

Safety

1.Build-in data storage and USB port for download

2.Temperature quick check via temperature curve

3.Password protection avoids key parameters unauthorized change

4.Safety door lock, preventing unauthorized access

5.Access port for additional temperature probe

6.Remote alarm contacts

7.Optional online monitoring system

8.Optional CO2/LN2 backup system


ModelMDF-86U340DMDF-86U458DMDF-86U588DMDF-86U728DMDF-86U988D
Main specificationsTypeUprightUprightUprightUprightUpright
Cooling technologyIndependent dual   coolingIndependent dual   coolingIndependent dual   coolingIndependent dual   coolingIndependent dual   cooling
Temperature setting  range (°C) -40~-86 -40~-86 -40~-86 -40~-86 -40~-86
Climate typeNNNNN
Capacity (L)360470580730988
2" box  storage Qty (Pcs)240320400500720
Net weight (KGs)230252272297356
Internal W×D×H (mm)460x600x1310600x600x1310740x600x1310740x755x1310880x857x1310
External W×D×H (mm)715x854X1976855x854X1976995x854X1976995x952X19761134x1115X1976
Door entrance limit (≥mm)715854854860990
Cooling typeDirectDirectDirectDirectDirect
DefrostManualManualManualManualManual
RefrigerantMixed gasMixed gasMixed gasMixed gasMixed gas
Number of compressor22222
Control & display systemControllerTC-300TC-300TC-300TC-300TC-300
Display7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen
Temperature display accuracy 0.10.10.10.10.1
Password protectionYesYesYesYesYes
Temperature graphYesYesYesYesYes
PowerPower   supply (V/Hz)220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60220/50;   220/60; 120/60
Rated power (W)1000; 1000; 10001100;   1100; 11001100;   1100; 11001100;   1100; 11001200; 1200; 1200
Rated current (A)6.0;   6.0; 12.06.2; 6.2; 12.56.2; 6.2; 12.56.2; 6.2; 12.56.4; 6.4; 12.8
Data memory & monitoring USB   portYesYesYesYesYes
Chart recorderOptionalOptionalOptionalOptionalOptional
Alarm functionsVisible/audible   alarm YesYesYesYesYes
High/Low tempYesYesYesYesYes
Hot condenserYesYesYesYesYes
Power failure YesYesYesYesYes
Sensor failureYesYesYesYesYes
High ambient tempYesYesYesYesYes
Door openYesYesYesYesYes
Remote alarm contactYesYesYesYesYes
AccessoriesInner door22222
CastersYesYesYesYesYes
Test access portΦ20mm   x 2Φ20mm   x 2Φ20mm   x 2Φ20mm   x 2Φ20mm   x 2
Adjustable shelves33333
Safety door lockYesYesYesYesYes
Pressure equalization portAuto   x 1 & manual x 1Auto   x 1 & manual x 1Auto   x 1 & manual x 1YesYes
Freezer rackOptionalOptionalOptionalOptionalOptional
Rack type (LxH)4x54x54x55x56x5
Rack Qty1216202024
CO2/LN2 backup systemOptionalOptionalOptionalOptionalOptional
MaterialExteriorPre-coated steelPre-coated steelPre-coated steelPre-coated steelPre-coated steel
InteriorPre-coated steelPre-coated steelPre-coated steelPre-coated steelPre-coated steel
InsulationPolyurethanePolyurethanePolyurethanePolyurethanePolyurethane
Vacuum insulation panel (VIP)YesYesYesYesYes
Cabinet insulation thickness (mm)9090909090mm
Outer door thinkness (mm)9090909090mm
Compressor brandSECOPSECOPSECOPSECOPSECOP
Blower brandEBMEBMEBMEBMEBM
ShippingGross   weight (KGs)261283311332401
Packing    W×D×H (mm)720x890x2180860x900x21801000x870x21801010x1010x21801224x1173x2180
Volume (m³)1.401.691.902.223.13
