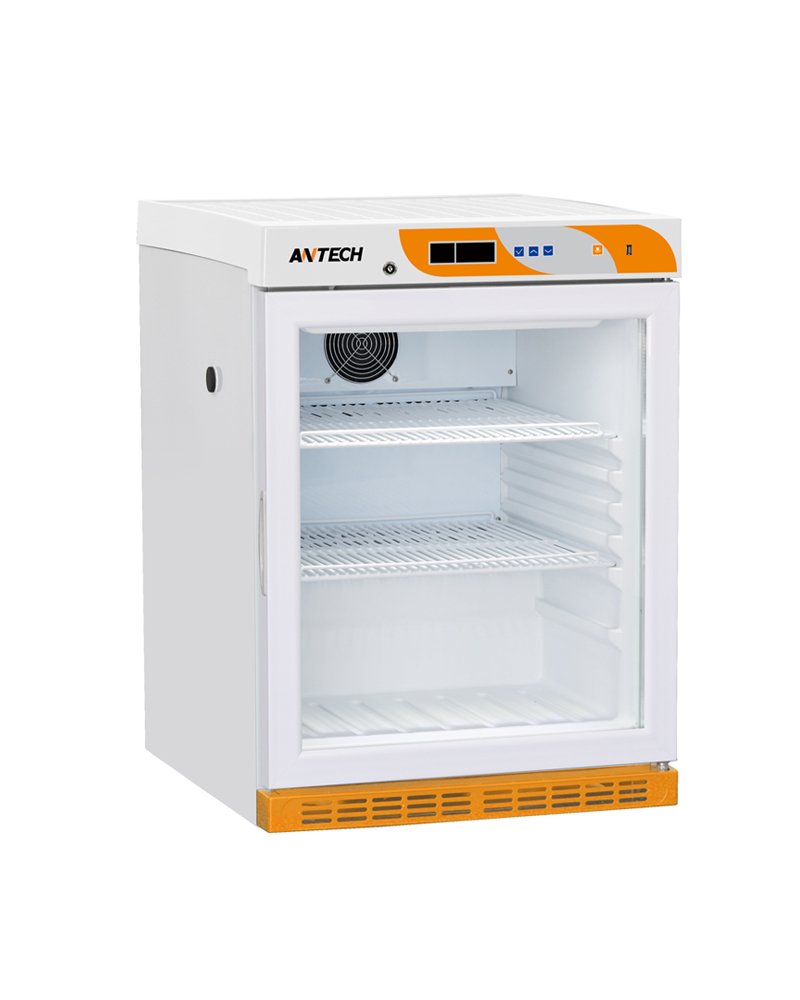

PharmaStore series pharmacy refrigerators

Antech PharmaStore series pharmacy refrigerators are designed to store drugs, vaccine and reagents in drug stores, clinics, hospitals and laboratories.


Advanced forced air cooling & dual sensor control systems are adopted for excellent temperature uniformity and accurate temperature control.


PharmaStore series are equipped with complete professional functions to guarantee safety of products, such as high/low temperature alarm, door ajar alarm, sensor error alarm, power failure alarm, remote alarm contact, etc.

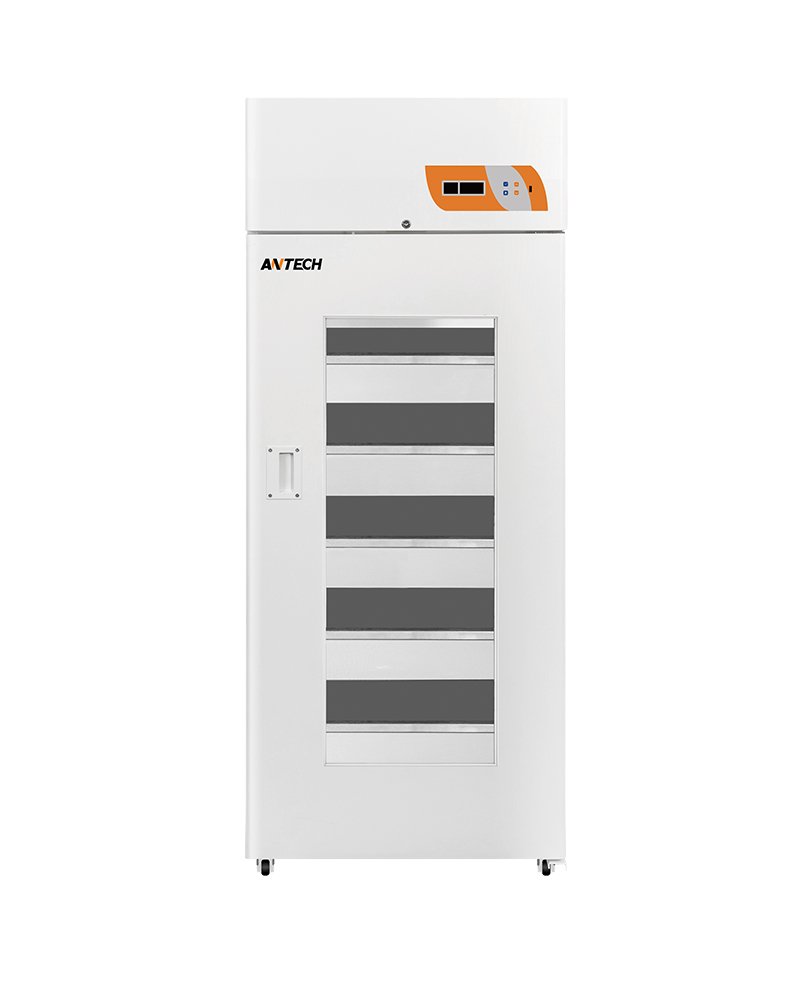

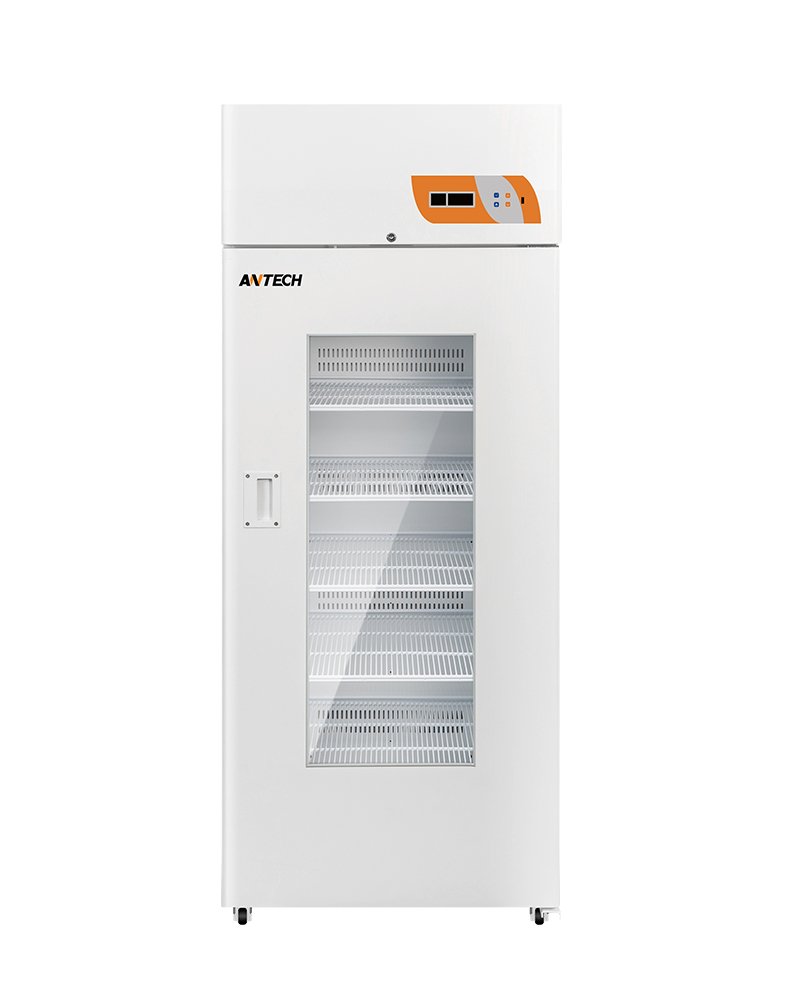

Available with a wide range of capacities, from 60 liter desktop refrigerator to 1015 liter side-by-side door refrigerator. PharmaStore series refrigerators are compliant with main international requirements, including CE, UL, etc.


This units uses environmentally friendly, natural refrigerant fully compliant with new EPA/SNAP/UL regulations.

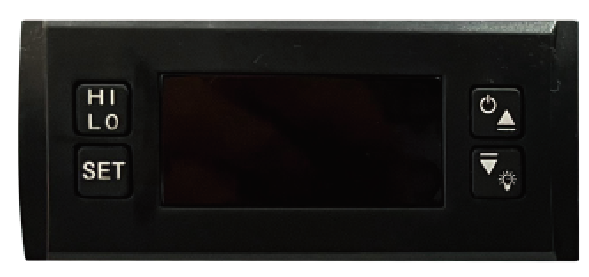

TC-110 Controller

Microprocessor electronic controller for PharmaStore

series pharmacy refrigerators, advanced dual sensor

control system for accurate temperature control.



Performance

1. Forced air cooling for excellent temperature uniformity

2. Variable (cycle) defrost

3. Microprocessor controller with LED digital display

4. Dual sensor design: Independent control sensor and display sensor

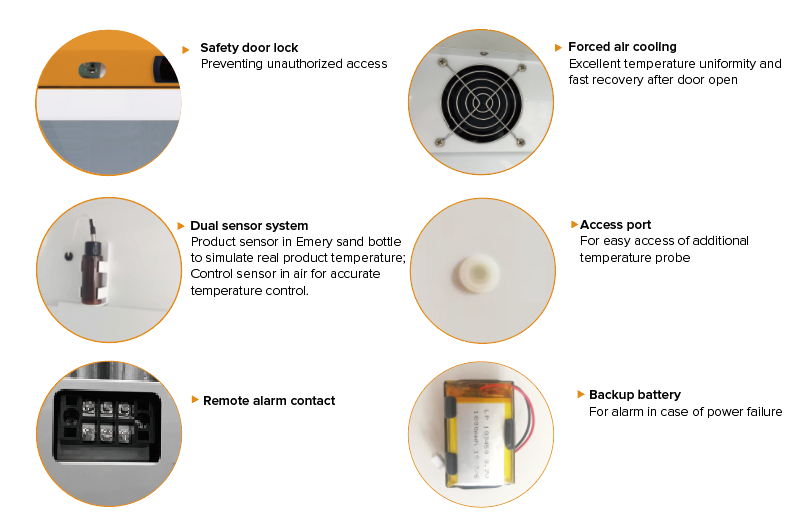

SAFETY

1. High/low temperature alarm, door ajar alarm, sensor error alarm, power failure alarm with backup battery

2. Safety door lock, preventing unauthorized access

3. Access port for additional temperature probe

4. Remote alarm contact

Ergonomic Design

1. Interior LED lighting for convenient operation

2. Ultra-quite design reduces noise level

3. Adjustable feet for leveling

ENVIRONMENT FRIENDLY

1. Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates

2. High efficiency cooling system for lower energy consumption and carbon emission

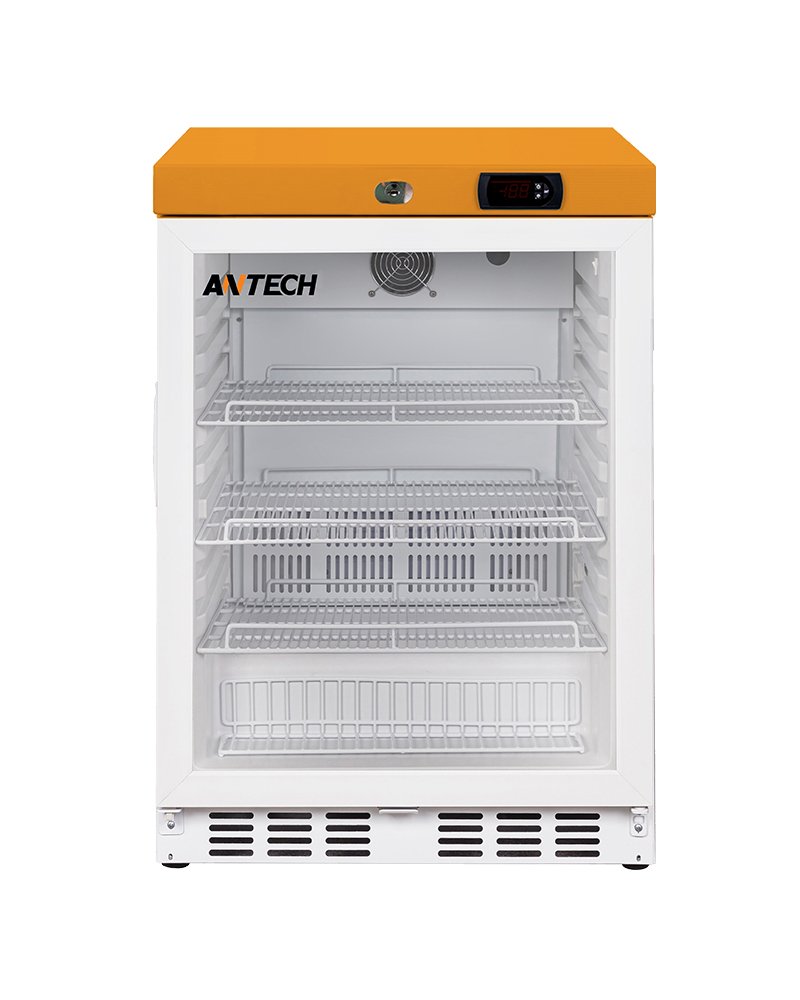

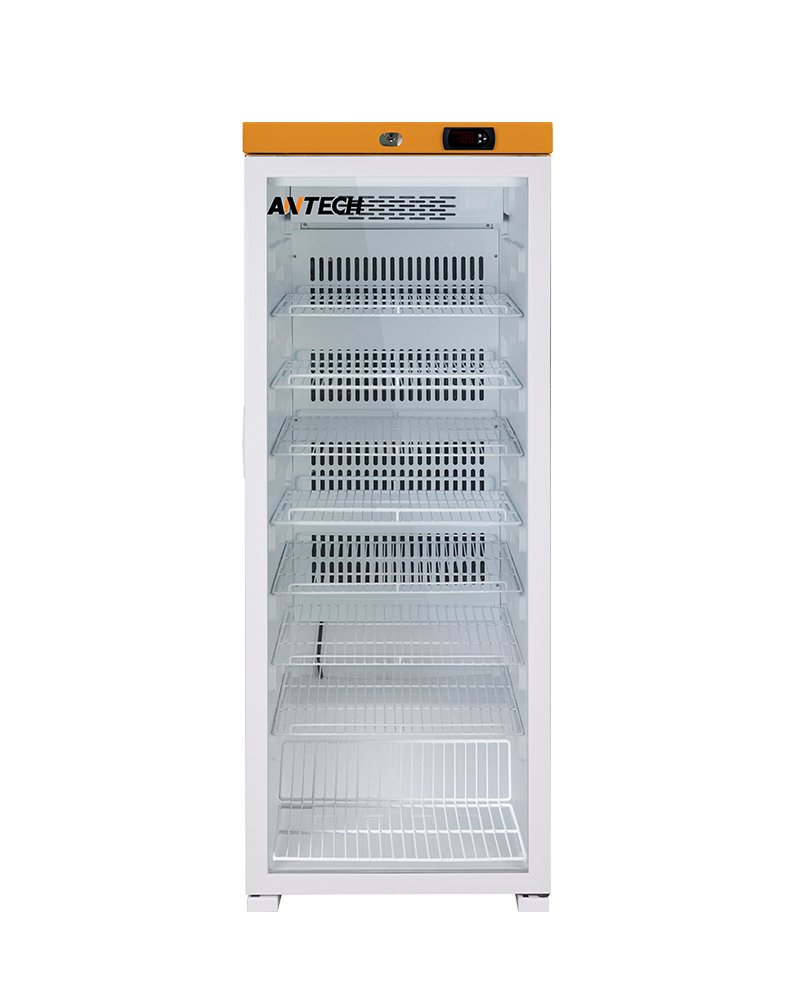

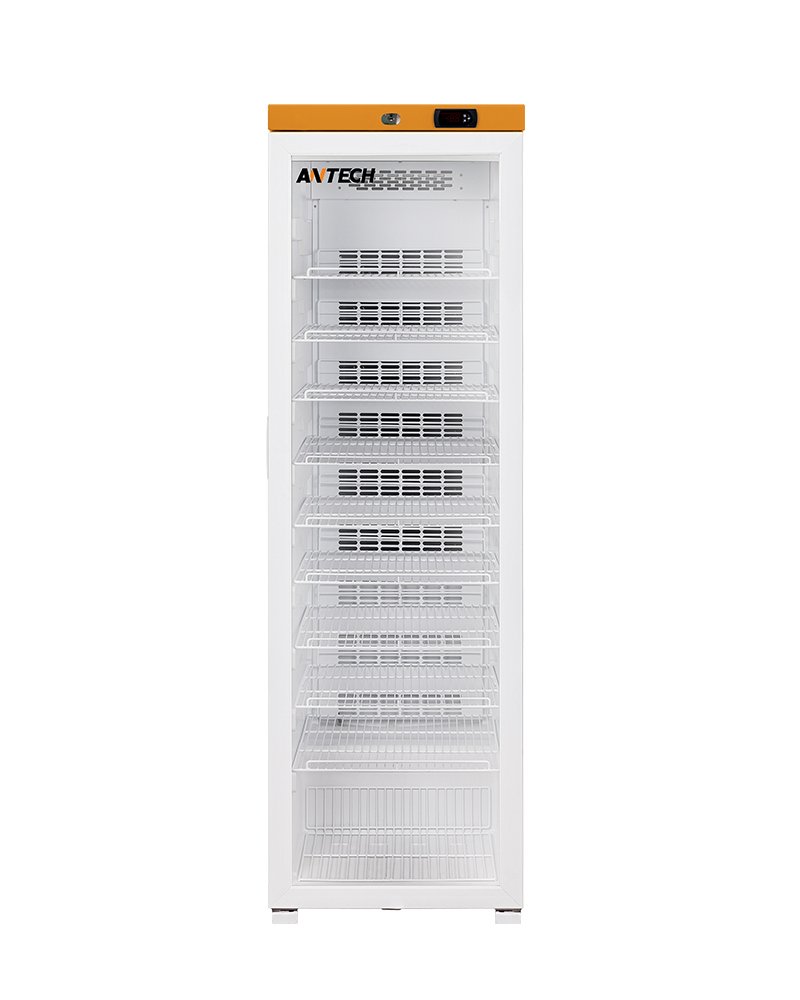

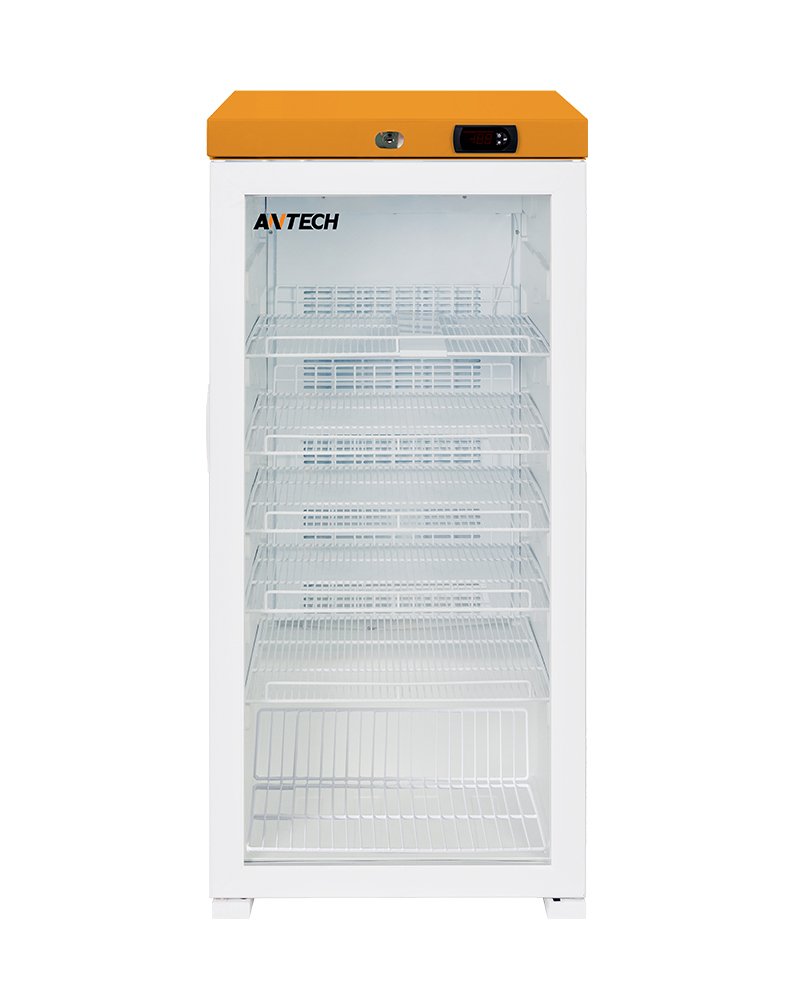

ModelMPR-60MPR-120MPR-280MPR-362MPR-440
Main SpecificationsTemperature   Range (℃)2~82~82~82~82~8
Climate ClassNNNNN
Capacity (L)60120280362440
Cooling TypeForced-AirForced-AirForced-AirForced-AirForced-Air
DefrostAutoAutoAutoAutoAuto
RefrigerantR600aR600aR600aR600aR600a
Noise (dB)4545454545
Control
    System
ControllerTC-110TC-110TC-110TC-110TC-110
DisplayLED digitalLED digitalLED digitalLED digitalLED digital
Display Accuracy0.1 ℃0.1 ℃0.1 ℃0.1 ℃0.1 ℃
SensorDisplay   sensor & control sensor
PowerPower   Supply (V/Hz)220   50/60; 120/60220   50/60; 120/60220   50/60; 120/60220   50/60; 120/60220   50/60; 120/60
Power (W)70;   85111; 97174; 165184; 175194; 185
Rated Current (A)0.6; 1.00.7; 1.21.1; 2.01.2; 2.01.3; 2.0
DimensionsInner   (W*D*H, mm)394*376*418477*424*632473*550*1160473*550*1460473*550*1760
External (W*D*H, mm)480*535*585597*540*885595*710*1345595*710*1645595*710*1945
Packing (W*D*H, mm)520*565*620635*585*955640*760*1370640*760*1670640*760*1970
Net Weight(KG)2944678092
Gross Weight(KG)32487590102
Alarm
    Functions
Visible/audible AlarmYesYesYesYesYes
High/Low TemperatureYesYesYesYesYes
Sensor ErrorYesYesYesYesYes
Door AjarYesYesYesYesYes
Power FailureYesYesYesYesYes
Low BatteryYesYesYesYesYes
Remote Alarm ContactYesYesYesYesYes
MaterialsExteriorPainted steelPainted steelPainted steelPainted steelPainted steel
InteriorPolystyrenePolystyrenePolystyrenePolystyrenePolystyrene
InsulationPolyurethanePolyurethanePolyurethanePolyurethanePolyurethane
DoorGlass door x 1Glass door x 1Glass door x 1Glass door x 1Glass door x 1
Inner lightLEDLEDLEDLEDLED
ShelfCoated Steel WireCoated Steel WireCoated Steel WireCoated Steel WireCoated Steel Wire
Shelf Qty1 large & 1 small3 large & 1 small5 large & 1 small7 large & 1 small9 large & 1 small
OthersDoor LockYesYesYesYesYes
Test Access PortYesYesYesYesYes
Adjustable FeetYesYesYesYesYes
Backup batteryYesYesYesYesYes
