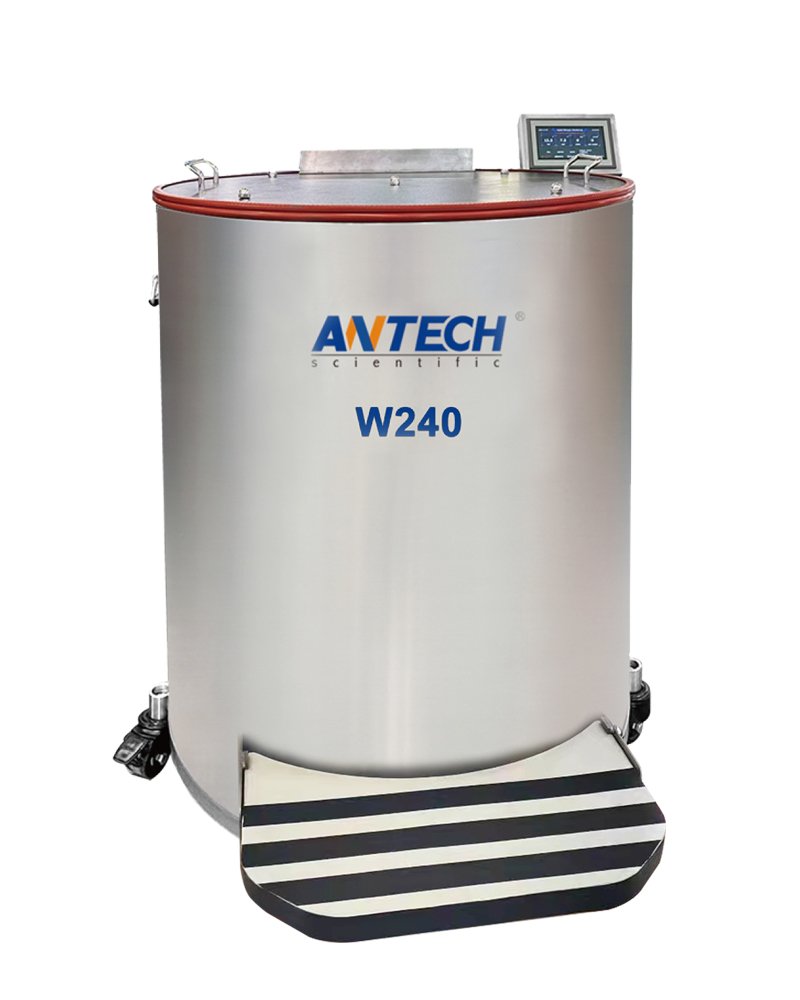

Cryogenic Freezer, LN2 Wide Neck

W series liquid nitrogen storage system provides ideal storage conditions for biological samples. Supported by LN2 automatic filling system and temperature & LN2 level monitoring system, W series cryogenic freezers provide all-round protection to precious sample, assisting life science research and cell therapy applications.


Based on the actual needs of users, Antech has innovatively optimized the performance, structure and control system of cryogenic freezer to meet the user's highest standard of large-capacity storage requirements.


Advanced Control System:

1. HMI human-machine interactive touch screen, display temperature, liquid level, temperature curve and alarm

information.

2. Important events such as temperature, alarm, liquid nitrogen fill, can be checked, and can also download

through USB disk.

3. Various alarms, and the alarm information can be stored and downloaded through the USB disk.

4. Operating data, such as temperature and liquid level, can be stored for up to 10 years.

5. Optimized structure design to achieve the best sample storage density and save space.

Features:

1. Multiple capacity freezers, from 175L to 600L, 2.0ml vials storage capacity from 10,000 to 40,500.

2. Excellent temperature uniformity and stability, enabling samples to be stored at controlled cryogenic environment.

3. Excellent vacuum performance and structural design ensure minimum liquid nitrogen consumption and lower

storage costs.

4. Advanced temperature, liquid level monitoring and alarm system, and can realize remote monitoring.

5. Automatic supply of liquid nitrogen, safe and labor-saving.

6. The liquid nitrogen supply system is controlled by multiple solenoid valves, which can effectively prevent the

overflow of liquid nitrogen and sample contamination caused by high LN2 level.

7. Manual filling available under special circumstances.

8. Compatible with vapor phase and liquid phase storage modes, users can choose according to their needs.

9. The optimized mechanism design realizes high-density storage to save space.

Humanized Design:

1. Defog function, easier to find samples and shorten lid opening time.

2. The remote alarm interface can be connected to the central alarm system.

3. Optional backup battery in case of power failure.

4. Optional vacuum jacketed hose for lower liquid nitrogen consumption.

5. Optional vapor platform, for vapor phase storage of bio-specimen.


ModelW100W240W380
Maximum storage   capacity
StrawPETG 1/4 straws151700352600549400
PETG 1/2 straws67525156950244550
HSV CBS high security straws67525156950244550
High security   CBS straws4162596750150750
Number of canisters (φ76mm)3786134
Goblet (φ65mm) per canister555
2ml vial1.2 &2ml   vials 104002405038350
Number of large rack (81/100-place box)71728
Number of small rack (25-place box)466
2" Boxes per rack131313
5ml vial5ml vials (81-place)3969963915876
Number of racks71728
3.75" Boxes per rack777
50ml blood bagNumbers of blood bag3438051407
Number of frames49115201
Bags per frame777
250ml blood bagNumbers of blood bag235535870
Number of frames47107174
Bags per frame555
500ml blood bagNumbers of blood bag185475680
Number of frames3795136
Bags per frame555
LN2 Capacity
LN2 capacity (L)175380600
Dimensions
Inner diameter (mm)533787991
Usable height (mm)787787787
Overall height (mm)132413241324
Weight empty (kg)120200270
Weight full, liquid phase (kg)262509758
Functions
ControllerTouch screenTouch screenTouch screen
Full auto fillStandardStandardStandard
Data storage/ USB port/ RS485 port StandardStandardStandard
DefogStandardStandardStandard
Foldable stepStandardStandardStandard
Accessories
Backup batteryOptionalOptionalOptional
Vacuum jacketed hoseOptionalOptionalOptional
Vapor platformOptionalOptionalOptional
Inventory rackOptionalOptionalOptional
Wi-Fi connection & cloud accessOptionalOptionalOptional
