GMP Bioreactor Design: 10 Key Features Buyers Should Check

A GMP bioreactor should not be evaluated by vessel volume and stainless-steel grade alone. Buyers should check the complete system—from hygienic design and agitation to automation, data integrity and qualification.

Here are 10 points that should be reviewed before purchase.

1. Hygienic Product-Contact Design

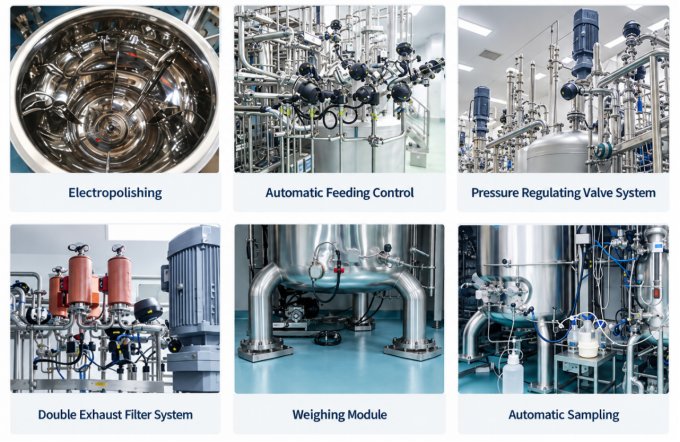

“Stainless steel” is not enough. Check surface finishing, sanitary piping, connections, valves and overall cleanability. Electropolishing and hygienic process design should be clearly specified where required.

2. CIP and SIP Capability

CIP/SIP should be engineered into the system—not added later. Confirm cleaning and sterilization coverage, controllable cycle parameters and whether critical process paths can be repeatedly cleaned and sterilized.

3. Agitation and Seal Design

The agitator seal is a critical contamination-control point. Depending on process requirements, the system may use double mechanical seals or magnetic agitation without a conventional mechanical seal. The choice should be based on sterility, containment and process requirements—not simply motor power.

4. Gas Flow and Pressure Control

A production bioreactor requires more than an air rotameter. Check mass-flow control, pressure regulation, gas configuration and exhaust handling. The system should maintain stable aeration and vessel pressure throughout the process.

5. Exhaust Filtration

Exhaust design is part of contamination control. For demanding applications, check filter configuration, condensation management and whether redundant or double exhaust filtration is available.

6. Automated Feeding and Weighing

Feeding should be measurable and reproducible. Automatic feeding, weighing modules and controlled addition of nutrients, acid, base or other process fluids reduce operator dependence and improve batch consistency.

7. Closed or Aseptic Sampling

Sampling should not become the weak point of an otherwise sterile system. The design should provide appropriate aseptic or closed sampling interfaces; automatic sampling can further reduce manual intervention.

8. Integrated Process Control

Temperature, pH, DO, agitation, feeding and gas control should operate as one integrated control strategy. Production GMP systems should provide industrial automation, real-time monitoring, alarm management and reliable process-data recording.

9. Audit Trail and Electronic Signature

For GMP applications, verify user access control, audit trails, electronic signatures and secure process records—not simply data export.

10. Qualification and Documentation

DQ, IQ and OQ requirements should be defined during engineering. FAT/SAT records, drawings, certificates and qualification documents should be part of the project scope.

What BioMatrix Can Deliver for GMP Bioreactor Projects

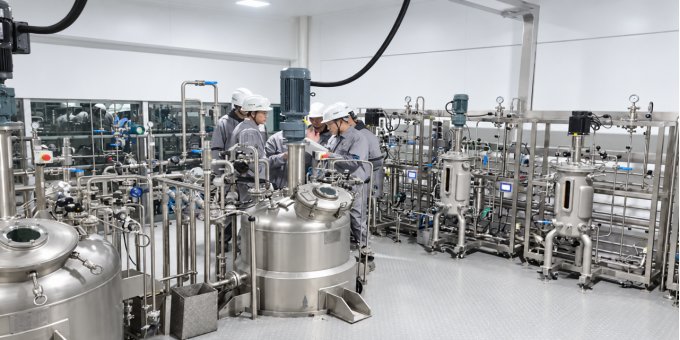

BioMatrix provides bioreactor systems engineered for GMP production environments, from engineering design to qualification support.

• 316L stainless-steel product-contact parts with internal surface roughness of Ra ≤ 0.4 μm.

• Hygienic piping and valve design including sanitary diaphragm valves, orbital welding, drainability and dead-leg minimization.

• Integrated CIP/SIP systems for automated cleaning and sterilization.

• Siemens PLC-based automation with recipe management, process control, alarm management and electronic batch records.

• Data-management functions supporting 21 CFR Part 11 requirements, including user management, audit trails and electronic records where applicable.

• Complete GMP documentation package including P&ID, material certificates, surface roughness reports, welding records, calibration certificates and component documentation.

• FAT, SAT, DQ, IQ and OQ support throughout project delivery.

From laboratory development to pilot and production scale, BioMatrix can configure the bioreactor around the actual process, utility conditions and validation requirements rather than supplying a fixed standard vessel.
