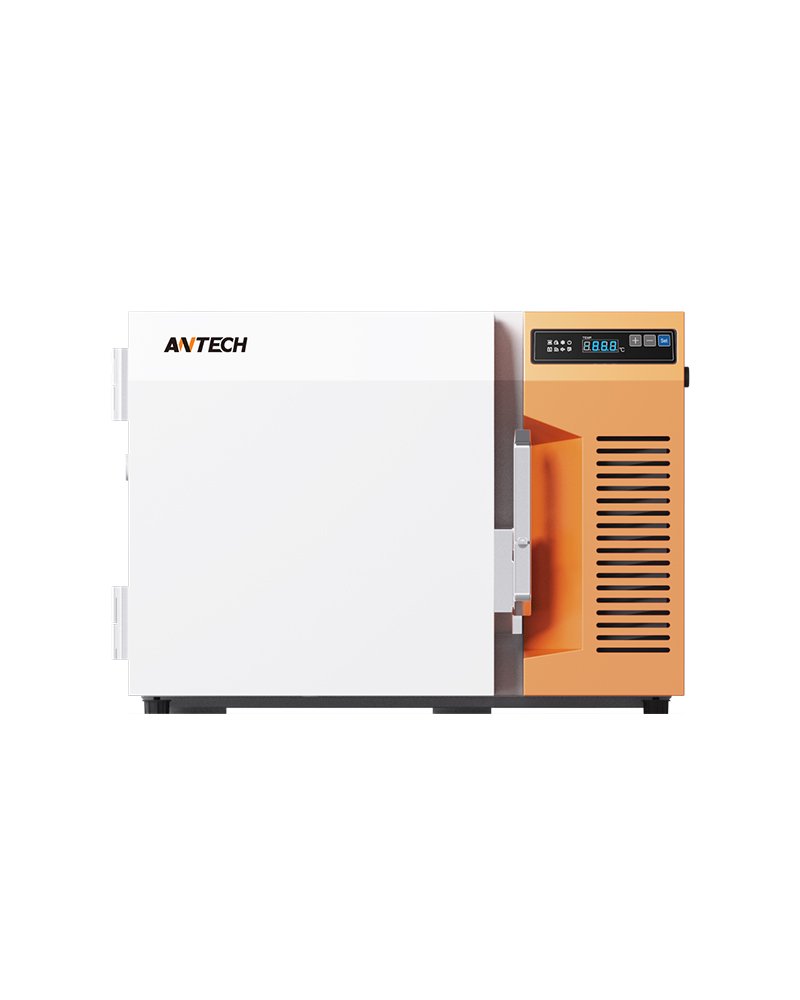

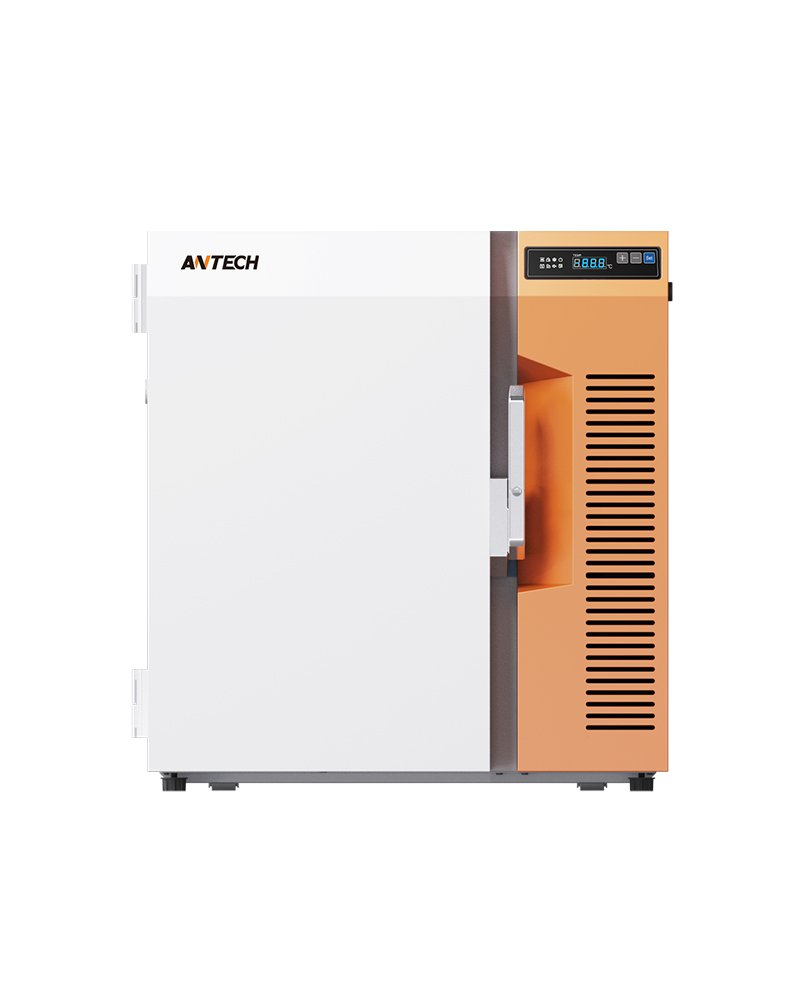

-86°C BioSafe-AIR ULT Freezer

TC-300A Controller

Microprocessor electronic controller TC-300A, fitted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.

Performance

1. High efficiency single compressor refrigeration system

2. V.I.P. (vacuum insulation panel) for excellent insulation

3. Honeywell Solstice® liquid blowing agent (LBA) for better insulation

4. Forming inner door(s) with door seal for better insulation

Alarms

1. High temperature

2. Low temperature

3. High ambient temperature

4. Door open

5. Power failure

6. Sensor error

7. High condenser alarm

8. Low battery

Ergonomic Design

Compact design for desk-top or under-counter usage

Silent running creating a user-friendly environment

Stackable design to save space

Stainless steel interior for easy cleaning

Pressure release port to allow door open with shorter interval

Environment Friendly

CFC-Free polyurethane foaming insulation

Honeywell Solstice® liquid blowing agent (LBA) makes environment green

High efficiency cooling system for lower energy consumption and less carbon emission

	Model	MDF-86U50	MDF-86U100
Main specifications	Type	Upright, desk-top	Upright, under-counter
	Stackable	●	●
	Cooling technology	Single compressor	Single compressor
	Temperature setting range (°C)	-40~-86	-40~-86
	Climate type	N	N
	Capacity (L)	58L	100L
	2" box storage Qty (Pcs)	30	60
	Net weight (KGs)	78	97
	Intermal W×D×H (mm)	340x460x364	340x460x630
	Extermal W×D×H (mm)	760x680x550	760x680x818
	Door entrance limit (≥mm)	680	680
	Cooling type	Direct	Direct
	Defrost	Manual	Manual
	Refrigerant	Mixed gas	Mixed gas
	Number of compressor	1	1
Control & display system	Controller	TC-300A	TC-300A
	Display	LED	LED
	Temperature display accuracy	0.1	0.1
	Password protection	●	●
Power	Power supply (V/Hz)	110V,50/60Hz；220V,50/60Hz	110V,50/60Hz；220V,50/60Hz
	Rated power (W)	450	450
	Rated current (A)	110V/5.0A 220V/2.5A	110V/5.0A 220V/2.5A
Data memory & monitoring	USB port	○	○
	Cloud monitoring (Wi-Fi)	○ CryoMonitor 2000TF	○ CryoMonitor 2000TF
	Visible/audible alarm	●	●
Alarm functions	High/Low temperature	●	●
	Hot condenser	●	●
	Power failure	●	●
	Sensor failure	●	●
	High ambient temperature	●	●
	Door open	●	●
	Remote alarm contact	●	●
Accessories	Inner forming door	1	2
	Adjustable foot	4	4
	Scroll wheel	N/A	2
	Stackable kit	○	○
	Test access port	1	1
	Adjustable shelves	1	1
	Safety door lock	●	●
	Pressure equalization port	●	●
	Freezer rack	○	○
	Rack type (DxH)	5x3	5x3
	Rack Qty	2	4
	CO2/LN2 backup system	○	○
Material	Exterior	Powder coated galvanized steel sheet	Powder coated galvanized steel sheet
	Interior	Stainless steel	Stainless steel
	Insulation	Polyurethane+LBA	Polyurethane+LBA
	Vacuum insulation panel (VIP)	●	●
	Cabinet insulation thickness (mm)	80	80
	Outer door thinkness (mm)	80	80

Biosafe-Air

CO2 Back-up System

LN2 Back-up System
