Home Products Biological Safety Cabinet Class II Type A2, PuriFlow Series

Class II Type A2, PuriFlow Series

View Other Series

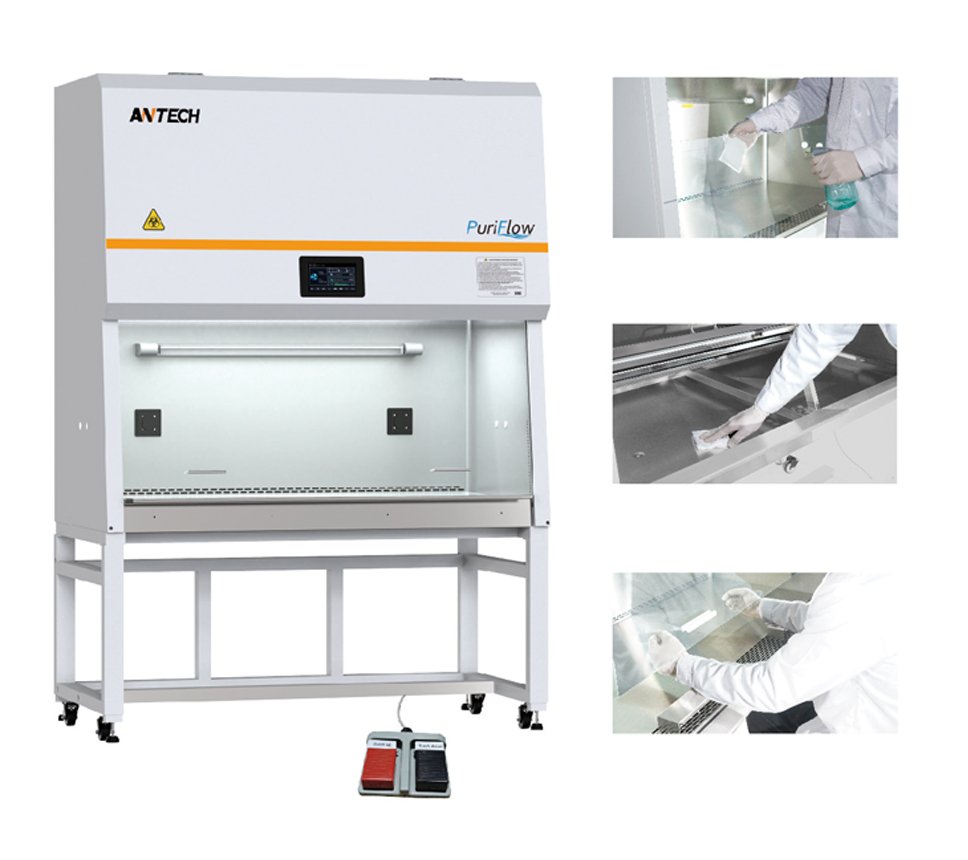

The Antech Scientific PuriFlow Series Class II, Type A2 biological safety cabinets offer safety, intelligence and value to users. The cabinet is energy efficient and provides both personal and product protection from biological hazards and contamination. The performance meets main international standards such as YY0569, EN12469 and NSF49.


WiseFlow

1. Advanced DC ECM blower, energy efficient and quite

2. Constant Air Volume (CAV) and Constant Pressure Apheresis System (CPAS) technology for automatic airflow compensation

3. U15 ULPA filter with filter life indicator alert

4. ECO mode for faster airflow recovery & lower power consumption


 Ergonomic design

1. 10° sloped front for ergonomics

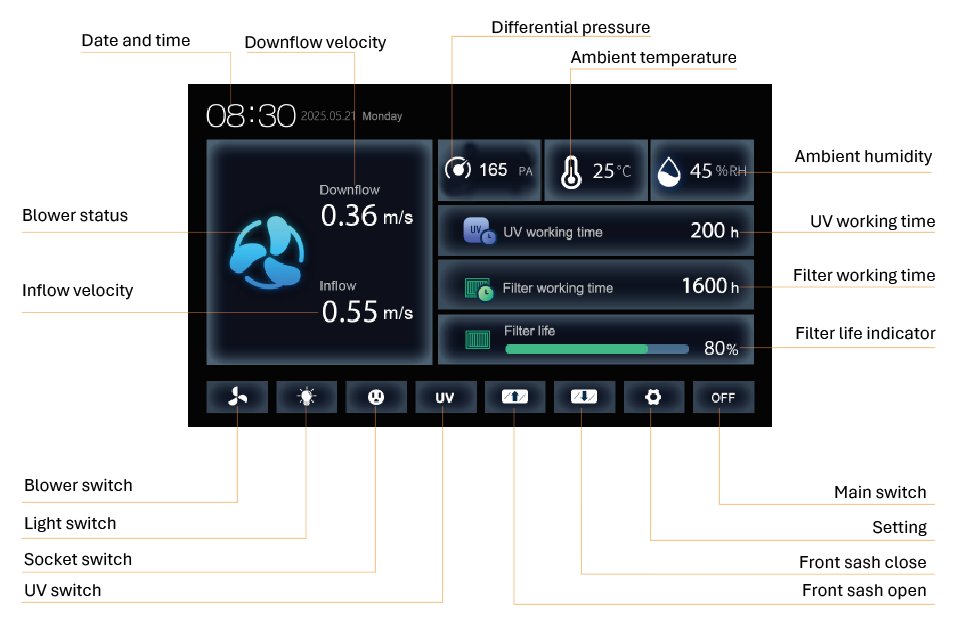

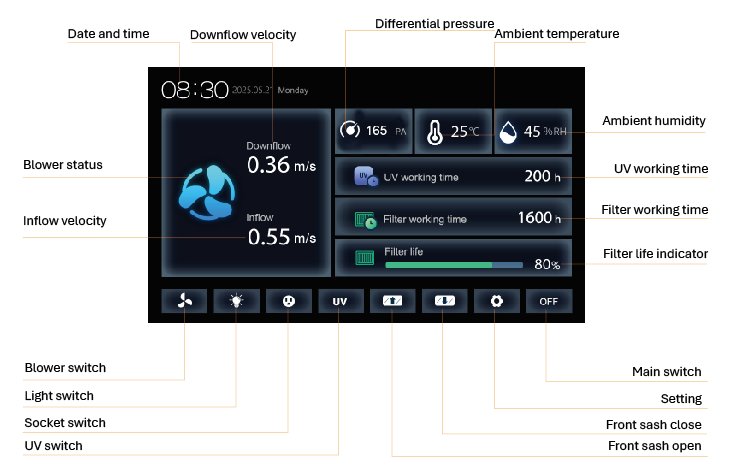

2. 7”touch screen operated with WiseFlow control system, clear display and easy operation

3. Motorized sash can be operated with touch screen, foot switch or remote controller

4. Adjustable height stand provided as standard, match different users’ requirements


Convenience

1. Dual UV-timer allows more flexibility to match user’s shifts

2. Water collection container and drain valve under work tray for convenient cleaning

3. Casters for easy moving, leveling feet for firm installation


Convenient features

WiseSash design

1. Motorized sash operated with touch screen, foot switch or remote controller

2. Independent manual sash system can be shut down when power failure

3. Sash window can be lowered for convenient cleaning

4. UV-proof sash window glass protecting people during disinfection

WisePort convenience

1. WisePort at both left and right side walls, providing flexibility to install

2. Various valves and pipelines for different applications

WiseClean design

1. Front window can be lowered for convenient cleaning

2. Work tray can be lifted and supported by rod when cleaning under tray area

Raised arm rest

1. Prevent grille blocking

2. Comfortable working posture

3. End-to-end design for free movement

ModelPF-A3  PF-A4      PF-A5PF-A6
TypeClass Ⅱ, type A2
Dimensions & weightNominal sizefeet/mm3 feet/1000mm4 feet/1300mm5 feet/ 1600mm6 feet/ 1800mm
ExternaI (W x D x H)mm1100 x 800 x 20401400 x 800 x20401700 x 800 x 20401900x800x2040
InternaI (W x D x H)mm1000 x 600 x 6001300 x 600 x 6001600 x 600 x 6001800x600x600
UsabIe working aream20.60.780.96         1.08
Working table height
750/800/850/900/950mm adjustable
Working height of front windowmm200200200200
Maximum opening height of front windowmm480480480480
Net weightkg235255300330
EiectricPower supply
220V, 50Hz; 220V, 60Hz；110V, 60Hz
Rated power W500540750850
Rated current A33.53.54
Power consumptionKWh/h0.50.60.60.7
LED lampW36 x 140 x 140 x 140 x 1
UV lampW20W x 130W x 130W x 130W x 1
ReceptacIe
2, Total 1320W, 6A
CIeanIinessFliter, downflow
U15 ULPA, ≥99.9995% @ MPPS, EN1822
Fliter, exhaust
U15 ULPA, ≥99.9995% @ MPPS, EN1822
CIeanIiness grade
ISO class 4
TotaI coIony in impaction sampIer (operator protection)CFU≤10≤10≤10≤10
TotaI coIony in sIit type sampIer (operator protection)CFU≤5≤5≤5≤5
TotaI coIony in cuIture dish (product protection)CFU≤5≤5≤5≤5
TotaI coIony in cuIture dish (cross contamination)CFU≤2≤2≤2≤2
AirflowAirfIow pattern
70% downfIow, 30% exhaust
Exhaust direction
Top exhaust
Avarage infIow veIocitym/s0.550.550.550.55
Averrage downfIow veIocitym/s0.360.360.360.36
Exhaust/infIow air voIumem3396515634713
DownfIow air voIumem374596911921341
ErgonomicsFront sash
Electric sash operated with touch screen, foot switch or remote controller
IIIumination lx>1000>1000>1000>800
Noise dB(A)<60<61<63<65
Valve (vacuum, gas, water)
⚪⚪⚪⚪
WisePort
2222
Drain valve
●●●●
Arm rest
⚪⚪⚪⚪
IV bar
⚪⚪⚪⚪
MaterialBIower
DC ECM blower
Working tray
SUS304
Inner walls
SUS304
Main body
Spraying coated steel
Front window glass
Tempered glass, UV-proof, 6mm
Stand
DetachabIe, ajustable height
Leveling foot
4444
Caster
4444
ControlDisplay & control
7" Touchscreen
Ambient temperature display
●●●●
Ambient humidity display
●●●●
UV lamp working time display
●●●●
Filter working time display
●●●●
Filter life indicator
●●●●
Cabinet ON/OFF timer
●●●●
UV timer
●●●●
Password protection
●●●●
USB port
●●●●
RS485 port
●●●●
AlarmAIarm type
Visible and audible alarm
InfIow veIocity
●●●●
DownfIow veIocity
●●●●
Sash height limit
●●●●
FiIter life alert
●●●●
ShippingPacking size, carton (W x D x H)mm1210 x 1000 x 17201510 x 1000 x 17201810 x 1000 x 17202010x1000x1720
Packing size, plywood case (W x D x H)mm1210 x 1000 x 17201510 x 1000 x 17201810 x 1000 x 17202010x1000x1720
Gross weight, carton kg285315370400
Gross weight, pIywood case kg335375440470
