LamiFlow Series

View Other Series

The PuriFlow series laminar flow cabinets offer safety, intelligence and value to users. The cabinet is energy efficient and provides excellent product protection from contamination. Both vertical and horizontal types are available for various applications.


Performance

•  Advanced ECM blower, energy efficient and lower noise

•  Constant Air Volume (CAV) and Constant Pressure Apheresis System (CPAS) technology for automatic airflow         compensation

•  H14 HEPA filter creates ISO Class 5 cleanliness workspace

Intelligent

•  Touch screen displays real-time velocity, pressure, temperature, humidity

•  Dual UV-timer & UV lamp working time display

•  HEPA filter working time display & filter life indicator alert

Ergonomic design

•  Glass side walls creating all-round vision

•  10° sloped front for ergonomics

•  SUS304 working tray for easy cleaning

•  Lockable casters for convenient moving

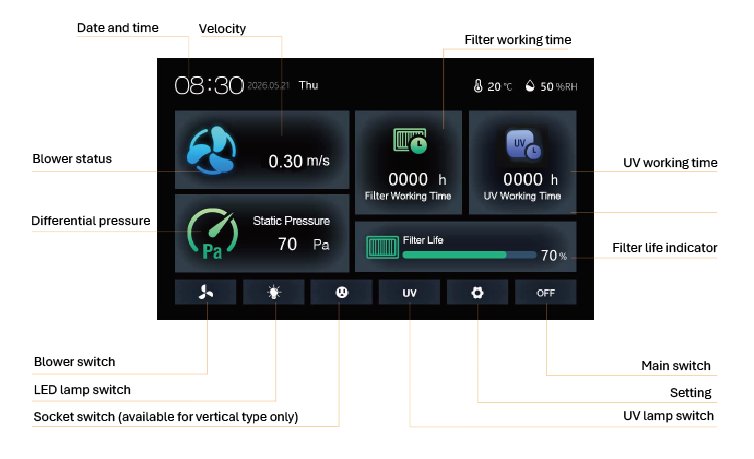

WiseFlow operating system

•  Touch screen, real-time display of temperature, humidity, UV lamp & filter working hours

•  Intelligent constant airflow control system

•  Visible and audible alarm

•  Timing function for unit and UV lamp

•  Password protection prevents unauthorized access


Model
LF-V3LF-V4LF-H5
AirflowAirfIow pattern
VerticalVerticalHorizontal
Velocity
Adjustable from 0.25m/s-0.40m/s
Dimensions & weightNominal sizefeet/mm3 feet4 feet5 feet
ExternaI with support stand (W x D x H)mm1000×720×17801500×720×17801700×760×1970
ExternaI without support stand (W x D x H)
1000×720×10951500×720×10951700×760×1170
InternaI (W x D x H)mm900×620×6001400×620×6001600×535×720
UsabIe working aream20.56 0.87 0.86
Working height of sashmm190~330190~330/
Maximum opening height of front windowmm520 520 /
Net weightkg125175175
ControlDisplay & control
4.3'' Touch Screen

Ambient temperature display
●●●
Ambient humidity display
●●●
UV lamp working time display
●●●
Filter working time display
●●●
Filter life indicator
●●●
Smart constant airflow
●●●
Cabinet ON/OFF timer
●●●
UV timer
●●●
Password protection
●●●
RS485 port
●●●
AlarmAIarm type
Visible and audible alarm
VeIocity abnormol
●●●
Sash too height/low
●●●
FiIter life alert
●●●
EiectricPower supply
220V, 50Hz; 220V, 60Hz; 110V 60Hz

Rated power W300 450 450
Rated current A1 2 2
LED lampW12×114×114×1
UV lampW20×130×130×1
ReceptacIe
2, total 1320W, 6A

CIeanIinessFliter
H14, ≥99.995% @0.3μm
Prefilter
Washable Pre-filter

CIeanIiness grade
ISO class 5

Concentration of descending bacteria
≤ 0.5cfu/0.5h (φ90mm Petri dish)

Light & NoiseIIIumination lx800700700
Noise *dB(A)555560
MaterialBlower
DC ECM blower

Working tray
1.5 mm thickness  SUS 304

Side walls
6mm glass  Anti-UV exporue

Main body
Spraying coated steel

Front sash glass
Tempered glass, UV-proof, 6mm/
Stand
Spraying coated steel

Casters
444
ShippingPacking size, plywood case (W x D x H)mm1110 x 820 x 19701610 x 820 x 19701830 x 890 x 2160
Gross weight, pIywood case kg180235235

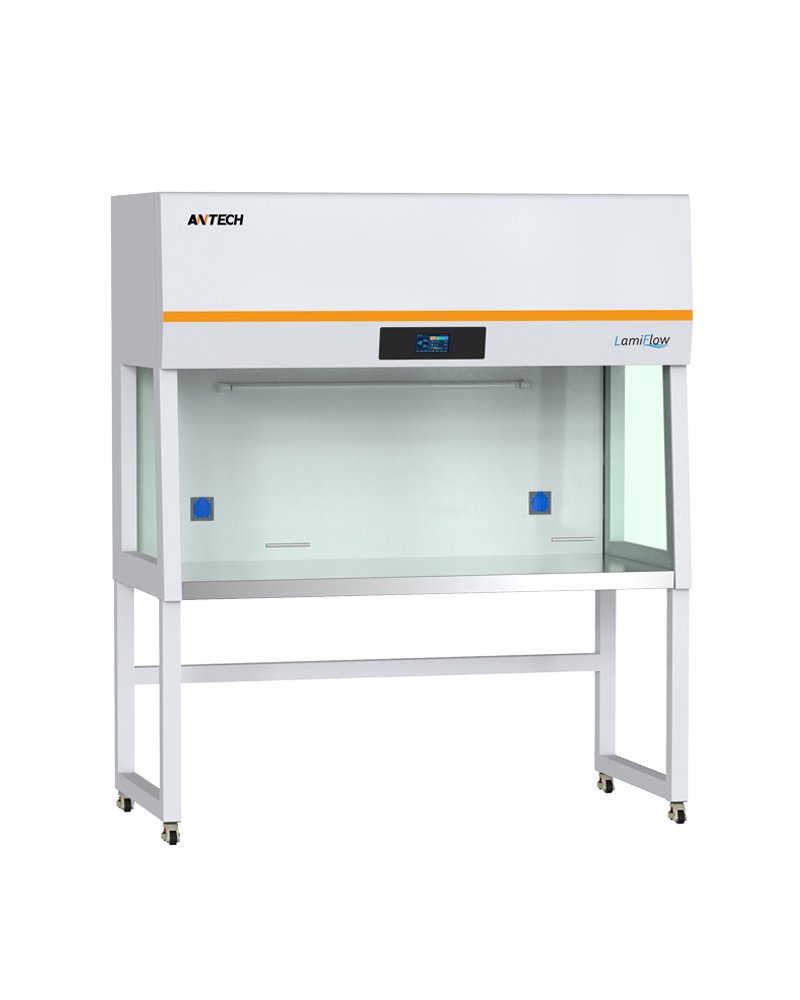

  Antech LamiFlow Series Clean Bench
