Key Considerations in Bioreactor Scale-Up and the BioVita Solution

In the fields of biopharmaceuticals and industrial fermentation, scaling from laboratory to industrial production scales represents a core challenge in achieving industrialization. Changes in fluid dynamics, mass transfer efficiency, and mixing uniformity during scale-up can lead to metabolic shifts, reduced yields, and even process failure. Addressing this critical pain point, BioMatrix has launched the BioVita series of bioreactors, offering a complete solution from laboratory to production scales.

I. Optimization of Mass Transfer and Mixing Efficiency
As reactor volume increases, mixing time lengthens and gas-liquid mass transfer efficiency decreases, making this a primary bottleneck in scale-up. The BioVita series addresses this through the synergistic combination of its gas supply, agitation system, and fluid dynamics design:

Precise Gas Supply:Offers up to four independent gas pathways equipped with mass flow controllers, supporting the complex gas demands of high-density fermentation and cell culture. Gases are introduced via a high-efficiency sparger, working in close coordination with the agitation system.

Multi-Stage Agitation and Fluid Dynamics Design:Production-scale fermenters utilize a customizable multi-stage impeller system. Flow field design and impeller configuration are tailored based on process requirements.

For high-oxygen-consumption microbial fermentation, we emphasize the use of radial-flow impellers (e.g., six-blade Rushton turbines) to maximize gas dispersion efficiency.

For shear-sensitive cell culture, we prioritize designs featuring high-efficiency axial-flow impellers (e.g., wide-blade hydrofoils) to ensure gentle and uniform fluid movement.

For filamentous organisms or high-viscosity systems, we recommend specialized, large-diameter, high-flow impellers to eliminate mixing dead zones.

II. Shear Force Control and Agitation System Optimization

Laboratory and Pilot Scale (≤200L):The BioVita S series offers both mechanical and magnetic drive agitation options, with speed accuracy of ±1 rpm, allowing precise adaptation to the shear sensitivity of different organisms.

Large Production Scale (500L – 10,000L):Uniformly employs high-performance mechanical agitation. The flow field is optimized using Computational Fluid Dynamics, scientifically configuring the ratio of axial to radial flow. Through efficient fluid circulation, uniform mixing throughout the entire vessel is achieved, with localized shear forces maintained within process-acceptable limits. This resolves the industry challenge of achieving "low speed, low shear, high efficiency" at relatively low agitation speeds (0-300 rpm).

III. Intelligent Scale-Up Solutions

Intelligent Monitoring: Equipped with proprietary bioprocess monitoring software, based on the theory of cellular metabolite flow detection and control. It can control or acquire more than ten parameters, including pH, DO, temperature, agitation speed, and airflow rate, supporting remote real-time monitoring and full operational traceability.

Flexible Feeding:Features four or more high-precision peristaltic pumps, supporting both manual and automatic feeding, enabling intelligent cascade control based on pH and dissolved oxygen levels, with adjustable feeding cycles and opening degrees.

Temperature Uniformity Assurance:Utilizes PT100 sensors and PID control algorithms with a temperature accuracy of ±0.1°C. The cooling water temperature range is from ambient temperature +5°C to 60°C, ensuring uniform and stable temperature distribution within large-scale reactors.

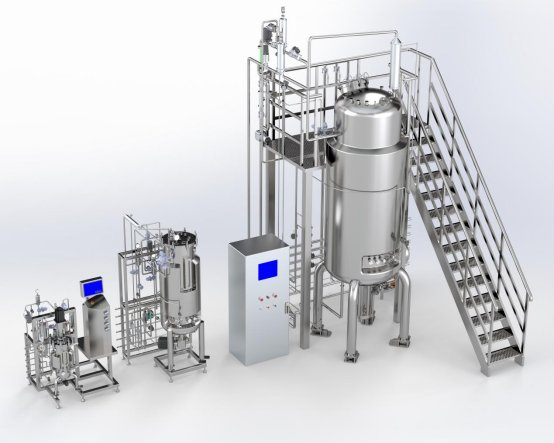

Modular Seamless Scale-Up:The BioVita series covers a full range of scales from 0.1L to 10,000L. A unified design philosophy and control strategy are employed across all scales, ensuring process parameter transferability and data comparability, effectively reducing risks associated with scale-up.

Outlook
BioVita will continue to empower customers to overcome process scale-up challenges through intelligent, modular bioreactor solutions, combining unified platform design, advanced process control, and innovative agitation systems. This accelerates the industrialization of innovative biological products and drives the biomanufacturing industry toward greater efficiency and higher quality.
