Mechanical vs. Magnetic Drive: Choosing the Right Bioreactor Agitation System

Agitation is essential to bioreactor performance, directly affecting mixing efficiency, oxygen transfer, and process stability. Beyond impeller design, the drive mechanism and mounting position also influence aseptic integrity, maintenance requirements, and equipment layout.

Mechanical and magnetic drive systems offer distinct advantages. Selecting the right configuration requires balancing process performance, sterility, and engineering requirements.

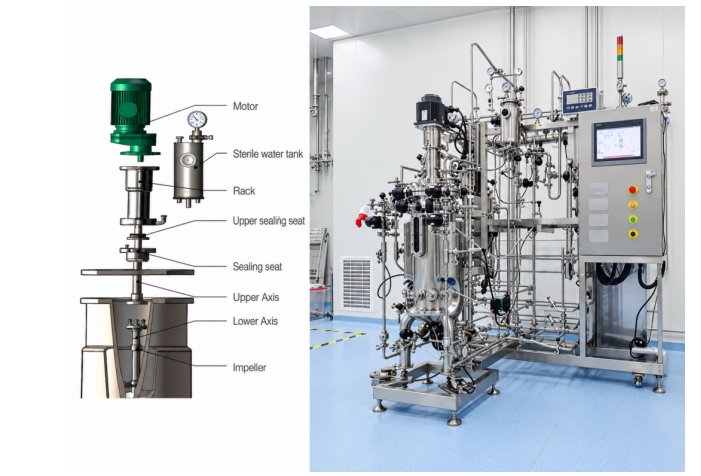

1. Top-Drive Mechanical Agitation

Top-drive mechanical systems deliver torque through a vertical shaft, supporting high-torque operation and flexible multi-stage impeller configurations.

Double mechanical seals, combined with appropriate sealing and sterilization systems, help maintain aseptic integrity during operation.

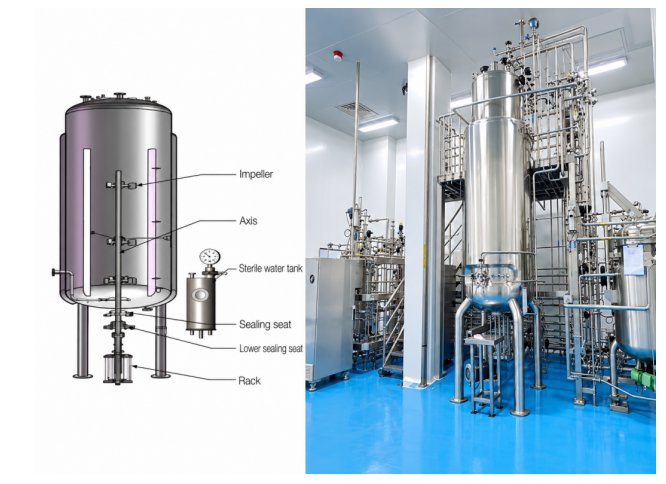

2. Bottom-Drive Mechanical Agitation

Bottom-mounted drives can reduce overall equipment height and improve overhead accessibility, making them suitable for facilities with limited ceiling space.

However, shaft sealing, sterilizability, and maintenance access require careful consideration, particularly in aseptic applications.

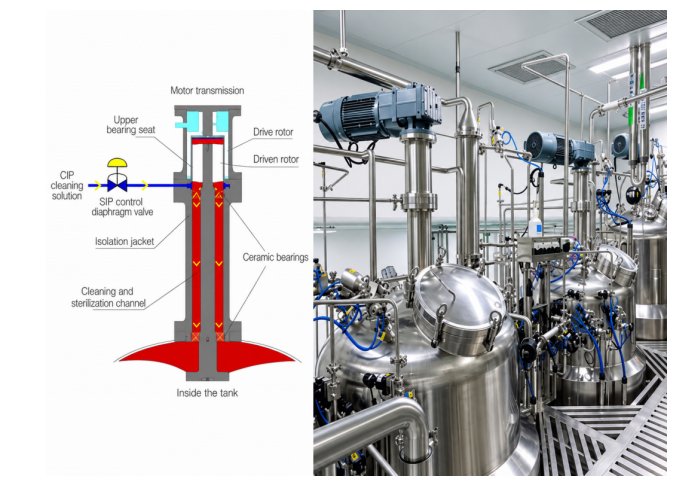

3. Top-Drive Magnetic Agitation

Magnetic coupling transmits torque without a conventional dynamic shaft seal penetrating the sterile boundary, reducing potential contamination pathways.

This configuration is particularly attractive for processes with stringent aseptic requirements, including sensitive cell cultures and extended cultivation periods.

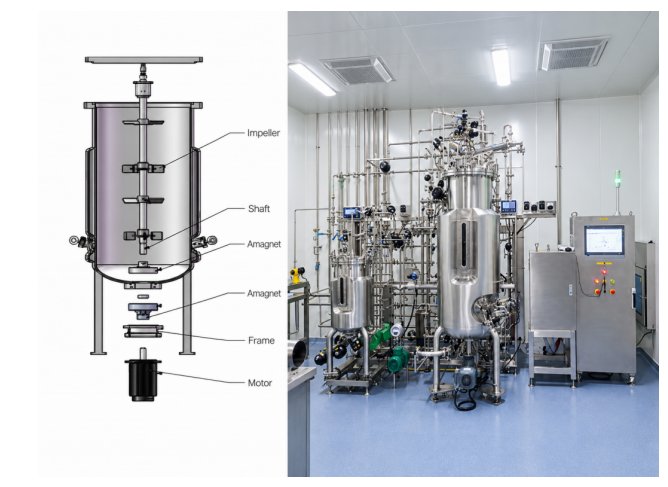

4. Bottom-Drive Magnetic Agitation

Bottom-mounted magnetic drives combine contactless torque transmission with a compact drive arrangement.

This design eliminates the need for a conventional dynamic shaft seal while reducing overhead drive requirements. Torque capacity, shaft support, and maintenance accessibility remain important selection factors.

Which Agitation System Should You Choose?

There is no universal solution. Mechanical drives offer flexible torque and impeller configurations, while magnetic drives can simplify aseptic containment.

The final selection should consider torque demand, aseptic requirements, vessel geometry, available installation space, and maintenance accessibility.

BioMatrix Agitation Solutions

BioMatrix offers configurable mechanical and magnetic agitation systems, with both top-drive and bottom-drive arrangements to meet different bioprocess requirements.

From microbial fermentation to mammalian cell culture, our engineering solutions are tailored to process conditions, mixing requirements, sterility needs, and equipment layout—ensuring the agitation system fits the application rather than forcing the process to fit the equipment.
