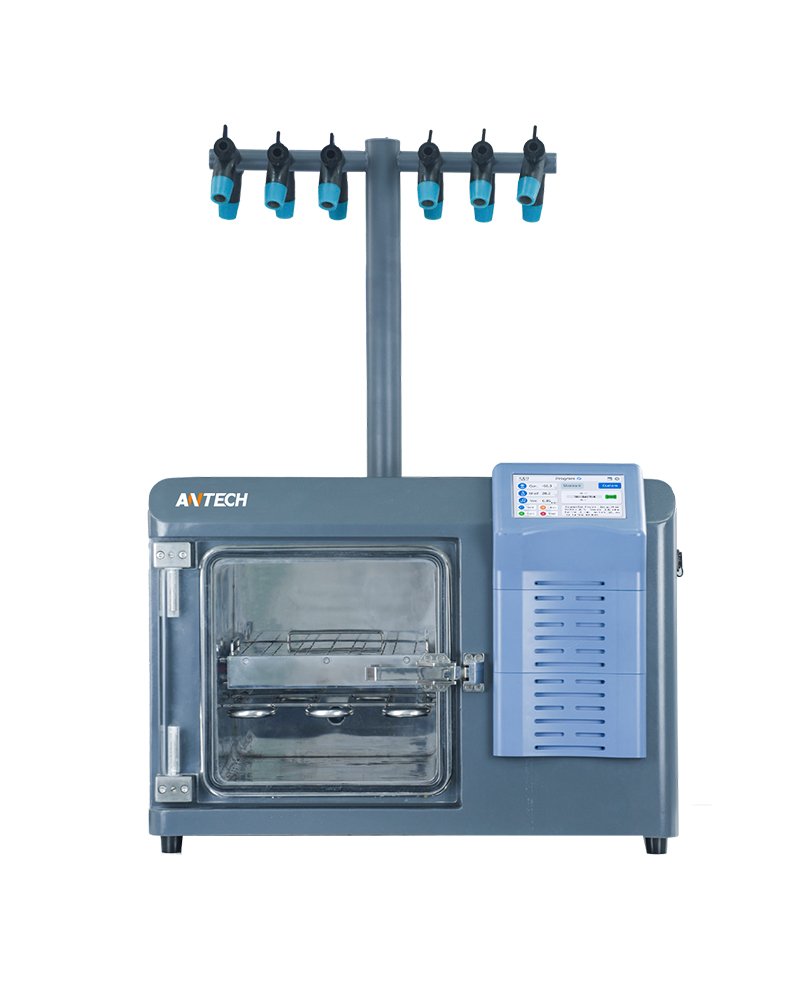

In-Situ freeze-drying: simplified processing
- All-in-one integration: The temperature-controlled shelves handle both pre-freezing and drying. Simply load your liquid samples into chamber, let LyoCubic do the rest - no external deep freezer or manual sample transfer required.
- Front-loading convenience: The ergonomic front-door design replaces traditional lift-off cylindrical freezing chamber. Loading and unloading samples are as easy as using a standard laboratory refrigerator.
Optimized efficiency & shortened cycle time
- Accurate vacuum control: controlled vacuum lowers resistance, allowing water vapor to escape much faster.
- Shelf heating: shelf heating delivers the energy needed for vaporization, accelerating desorption drying & significantly shortening cycle time.
Advanced cooling system
- Single chamber system with a 4kg capacity built-in ice condenser
- 60°C: single compressor system
- 90°C: 2-compressor cascade system
- SECOP brand compressor for durable use

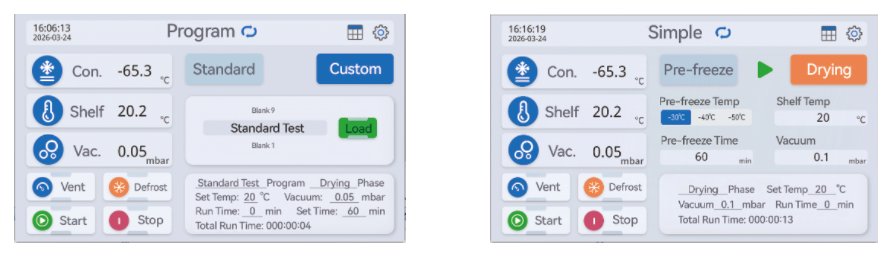

Simplified User Interface
“One button drying”: Powered by LyoSmart C system, LyoCubic series allows users to run an entire cycle with a single touch for routine tasks, eliminating complex programming.
“One button operation”:
- One-button start: in auto mode, press to start process according to preset program
- One-button stop: vacuum valve shut off, preventing product polluted due to vacuum back suction of pump oil
- One-button vent: aeration valve controls vacuum vent gradually, preventing product polluted due to vacuum back suction of pump oil
- One-button defrost: hot air defrosting of condenser, to enter a new process faster
