-86°C ULT Portable Freezer, 1 Liter

Antech CryoExpress series ultra low temperature portable freezer is compact in size, light in weight, and powerful in cooling.

Taking advantages of advanced Stirling cooling technology, CryoExpress series offer wide range accurate temperature control, from ambient temperature to -86°C ultra low temperature, which can be used for transportation of biological sample, vaccine, pharmacy, etc.

The portable freezer can be powered with 12~30V DC on a moving vehicle or vessel. Since a built-in lithium battery is supplied, it even works for certain time without any external power supply, so that the positive cooling continues from vehicle to freezer at destination.

By using adapter, CryoExpress series freezer can be powered and charged with 100~240V AC power supply.

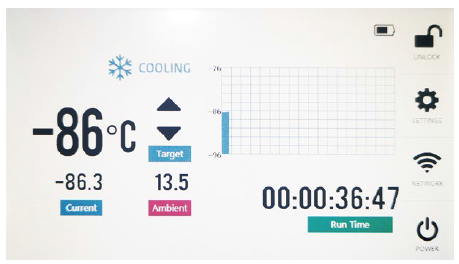

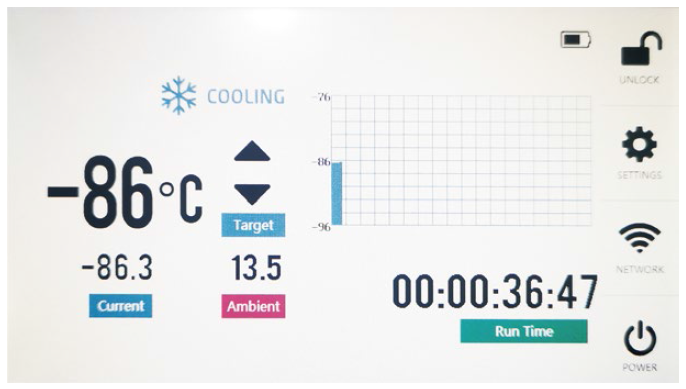

Touch screen controller

1. Set temperature

2. Inner cabin temperature

3. Ambient temperature

4. Temperature graph

5. Running time

6. Battery status

7. Door lock status

8. Settings

9. Network status

10. Power button


Model CryoExpress ONE
BasicTemperature range-86°C to 8°C @ 25°C ambient
Climate typeSN/N
Capacity1 Liter
2ml vials capacity100 pcs (81/100-place cryogenic box)
Cooling systemFree-piston Stirling engine cooler
InsulationVacuum insulation panel & polyurethane foam
Door lockNFC electric lock & manual lock
ControlControllerTouch screen
USB port & data menory
PowerPower supplyDC 12~30V; AC 100~240V, 50/60Hz
Rated power80W
Power cordAC adapter & power cord, DC power cord
Backup battery (standard)Built-in lithium battery, 1-hour working time
Backup battery (optional)External lithium battery, 4-hour working time
Weight & sizeNet weight13.5kg
Interma W×D×H (mm)147 x 130 x 58
Extermal W×D×H (mm)290 x 311 x 450
